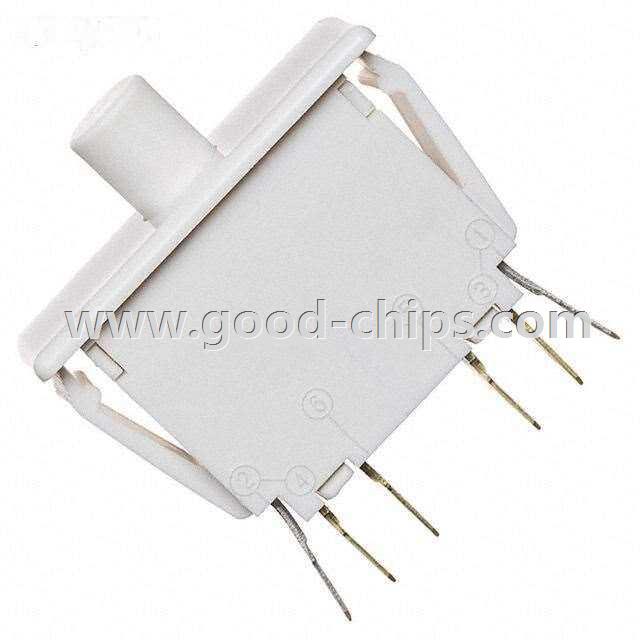

| Manufacturer Part Number: | DS2F5AQ3 |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9410 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACT DPDT 100MA 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DS2F5AQ3 Datasheet |
| Internal Part Number | 898-DS2F5AQ3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | DS Door Interlock Switch Introduction to Electromechanical Switches Industrial Switches for Safety and Security | |
| Featured Product | DS Series Interlock Pushbutton Switches | |
| 3D Model | DS2xxAQ3.pdf DS2xxAQ3.stp | |
| Online Catalog | DS Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | C&K Components | |
| Series | DS | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPDT | |
| Switch Function | On-Mom | |
| Current Rating | 100mA (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 680gf | |
| Release Force | - | |
| Pretravel | - | |
| Differential Travel | - | |
| Overtravel | 0.125" (3.2mm) | |
| Operating Position | 0.350" (8.9mm) | |
| Mechanical Life | - | |
| Electrical Life | 50,000 Cycles | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DS2F5AQ3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DS2F5AQ3 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of DS2F5AQ3 is new and unused, you can buy DS2F5AQ3 C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DS2F5AQ3.
