| Manufacturer Part Number: | DS1855X-050#T&R |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Data Acquisition - Digital Potentiometers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Digital Potentiometer 50k Ohm 2 Circuit 100, 256 Taps I²C Interface 14-FlipChip (2.11x2.34) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DS1855X-050#T&R Datasheet |
| Internal Part Number | 898-DS1855X-050#T&R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | DS1845/DS1855 Temperature Coefficient Analysis | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Digital Potentiometers | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Taper | Linear | |
| Configuration | Potentiometer | |
| Number of Circuits | 2 | |
| Number of Taps | 100, 256 | |
| Resistance (Ohms) | 50k | |
| Interface | I²C | |
| Memory Type | Non-Volatile | |
| Voltage - Supply | 2.7 V ~ 5.5 V | |
| Features | Selectable Address | |
| Tolerance | ±20% | |
| Temperature Coefficient (Typ) | 750 ppm/°C | |
| Resistance - Wiper (Ohms) (Typ) | 65 | |
| Operating Temperature | -40°C ~ 85°C | |

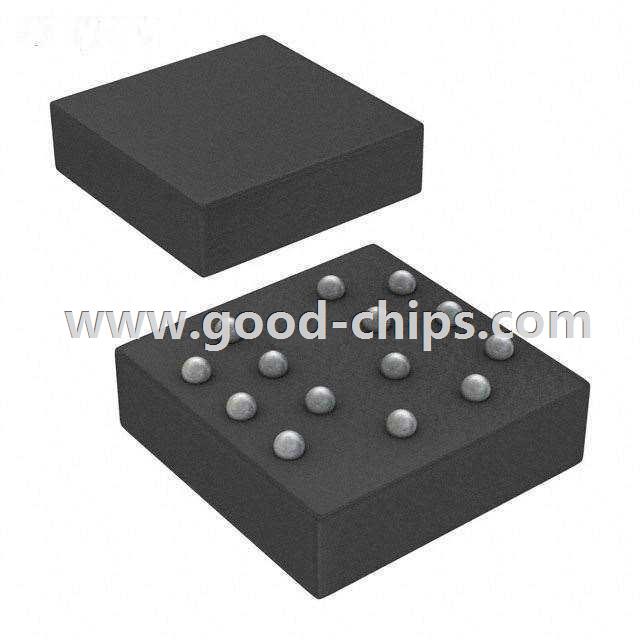

| Package / Case | 14-WFBGA, FCBGA | |
| Supplier Device Package | 14-FlipChip (2.11x2.34) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DS1855X-050#T&R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DS1855X-050#T&R is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of DS1855X-050#T&R is new and unused, you can buy DS1855X-050#T&R Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DS1855X-050#T&R.
