| Manufacturer Part Number: | DS1386P-8-120 |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Clock/Timing - Real Time Clocks |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Real Time Clock (RTC) IC Clock/Calendar 8KB Parallel 34-PowerCap™ Module |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DS1386P-8-120 Datasheet |
| Internal Part Number | 898-DS1386P-8-120 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Clock/Timing - Real Time Clocks | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Type | Clock/Calendar | |
| Features | Alarm, Leap Year, NVSRAM, Square Wave Output, Watchdog Timer | |
| Memory Size | 8KB | |
| Time Format | HH:MM:SS:hh (12/24 hr) | |
| Date Format | YY-MM-DD-dd | |
| Interface | Parallel | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Voltage - Supply, Battery | 3V | |
| Current - Timekeeping (Max) | 4mA @ 5V | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Surface Mount | |

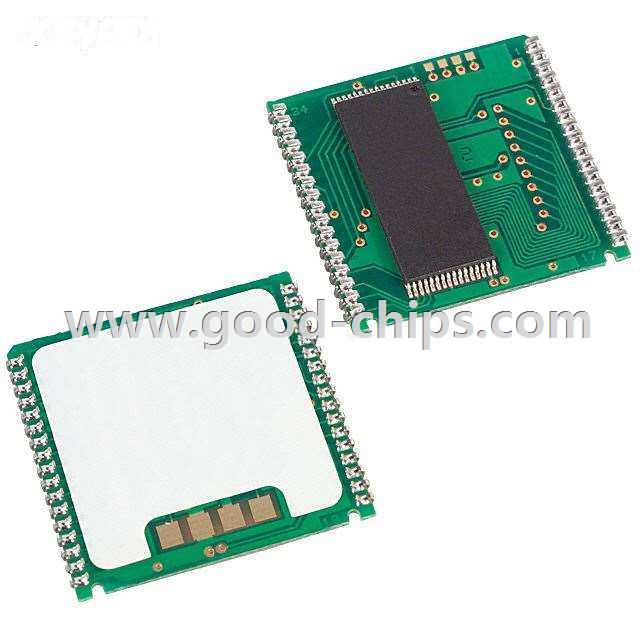

| Package / Case | 34-PowerCap™ Module | |
| Supplier Device Package | 34-PowerCap Module | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DS1386P-8-120 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DS1386P-8-120 is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of DS1386P-8-120 is new and unused, you can buy DS1386P-8-120 Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DS1386P-8-120.
