| Manufacturer Part Number: | DS12885TN+ |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Clock/Timing - Real Time Clocks |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Real Time Clock (RTC) IC Clock/Calendar 114B Parallel 32-TQFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DS12885TN+ Datasheet |
| Internal Part Number | 898-DS12885TN+ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Crystal Considerations with Maxim Real-Time Clocks (RTCs) Design Considerations for Maxim Real-Time Clocks Lithium Coin-Cell Batteries: Predicting an Application Lifetime Using Multiplexed Bus Clocks with a Microcontroller Using the DS32kHz with Maxim Real-Time Clocks Interface a Multiplexed-Bus Real-Time Clock to a uP With Separate Address and Data Buses Problems and Solutions for Adjusting to Changes in Daylight Saving Time Selecting a Backup Source for Real-Time Clocks Oscillator Design Considerations for Low-Current Applications State Machine Logic in Binary-Coded Decimal (BCD)-Formatted Real-Time Clocks | |
| Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
| Category | Integrated Circuits (ICs) | |
| Family | Clock/Timing - Real Time Clocks | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Clock/Calendar | |
| Features | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output | |
| Memory Size | 114B | |
| Time Format | HH:MM:SS (12/24 hr) | |
| Date Format | YY-MM-DD-dd | |
| Interface | Parallel | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Voltage - Supply, Battery | 2.5 V ~ 4 V | |
| Current - Timekeeping (Max) | 15mA @ 4.5V ~ 5.5V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

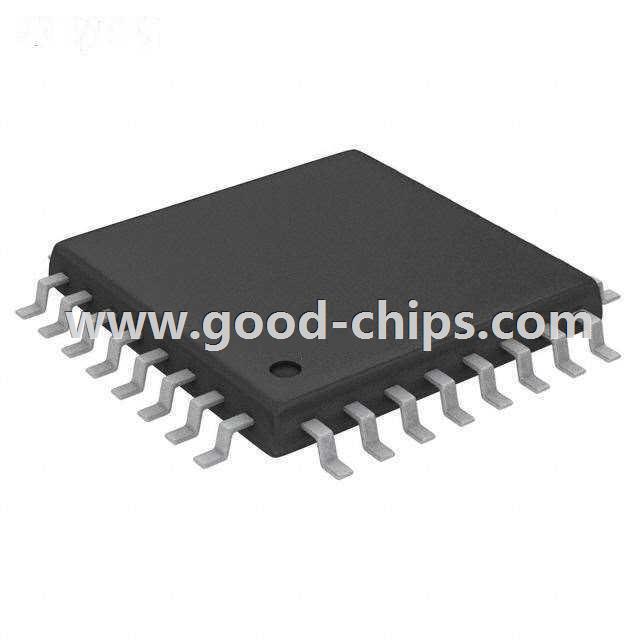

| Package / Case | 32-TQFP | |
| Supplier Device Package | 32-TQFP (7x7) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DS12885TN+ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DS12885TN+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of DS12885TN+ is new and unused, you can buy DS12885TN+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DS12885TN+.
