Manufacturer Part Number: | DS1005-125+ |
---|---|
Manufacturer: | Maxim Integrated |
Product Category: | Clock/Timing - Delay Lines |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Delay Line IC Nonprogrammable 5 Tap 125ns 14-DIP (0.300", 7.62mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DS1005-125+ Datasheet |
Internal Part Number | 898-DS1005-125+ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Clock/Timing - Delay Lines | |
Manufacturer | Maxim Integrated | |
Series | - | |
Packaging | Tube | |
Part Status | Obsolete | |
Number of Taps/Steps | 5 | |
Function | Nonprogrammable | |
Delay to 1st Tap | 25ns | |
Tap Increment | 25ns | |
Available Total Delays | 125ns | |
Number of Independent Delays | 1 | |
Voltage - Supply | 4.75 V ~ 5.25 V | |
Operating Temperature | 0°C ~ 70°C | |
Mounting Type | Through Hole | |

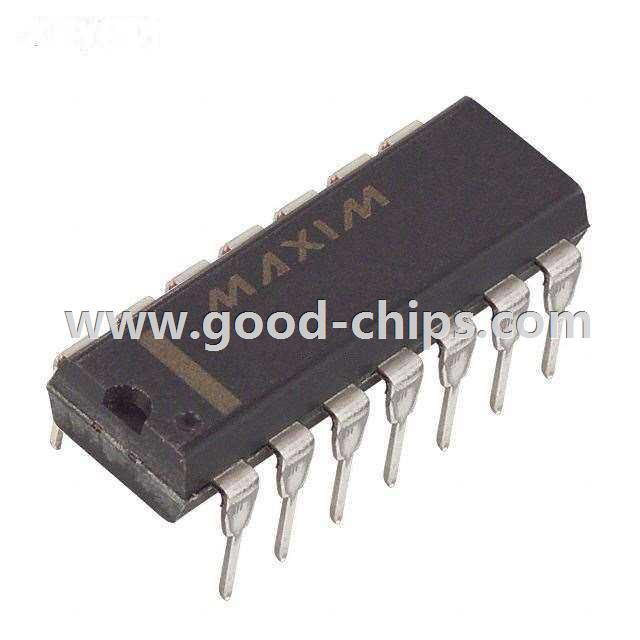

Package / Case | 14-DIP (0.300", 7.62mm) | |
Supplier Device Package | 14-PDIP | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DS1005-125+ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DS1005-125+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of DS1005-125+ is new and unused, you can buy DS1005-125+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DS1005-125+.
