_4040233^C.jpg)
| Manufacturer Part Number: | DRV102T |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9307 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC POWER DRIVER PWM TO220-7 |
| Lead Free Status / RoHS Status: | Request inventory verification / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DRV102T Datasheet |
| Internal Part Number | 898-DRV102T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Relay, Solenoid Driver | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Switch Type | Relay, Solenoid Driver | |
| Number of Outputs | 1 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | High Side | |
| Output Type | Bipolar | |
| Interface | On/Off | |
| Voltage - Load | 8 V ~ 60 V | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 2A | |
| Rds On (Typ) | - | |
| Input Type | Non-Inverting | |
| Features | Internal PWM, Status Flag | |
| Fault Protection | Current Limiting (Fixed), Over Temperature | |
| Operating Temperature | -55°C ~ 125°C (TA) | |

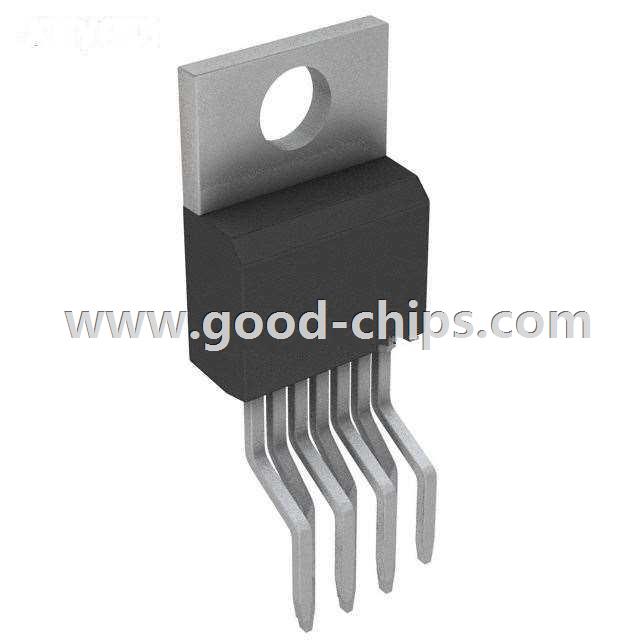

| Package / Case | TO-220-7 (Formed Leads) | |
| Supplier Device Package | TO-220-7 | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DRV102T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DRV102T is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of DRV102T is new and unused, you can buy DRV102T Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRV102T.
