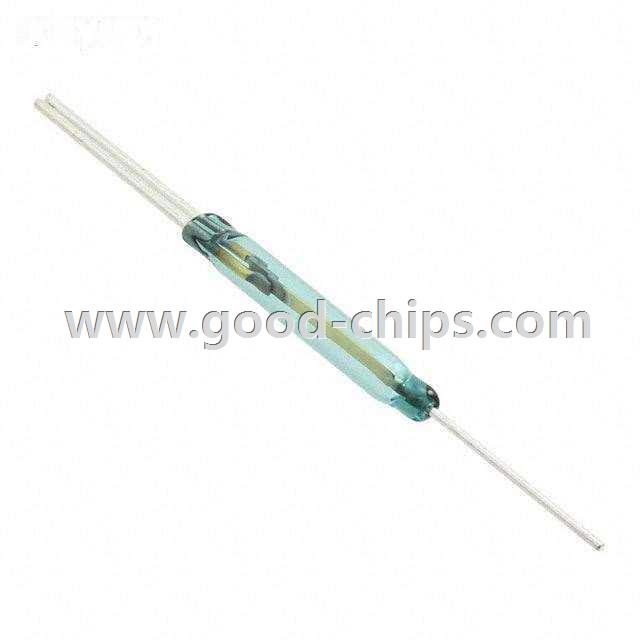

| Manufacturer Part Number: | DRR-DTH-50-55 |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Magnetic, Reed Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Glass Body Reed Switch SPDT 50 ~ 55AT Operate Range 30W 350mA (AC), 500mA (DC) 350V Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DRR-DTH-50-55 Datasheet |
| Internal Part Number | 898-DRR-DTH-50-55 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Ampere*turn vs. mT & Gauss Appl Note Handling of Reed Sensors, Relays, Switches Appl Note Reed Switch, Sensor Activation Appl Note Modifying Reed Switches | |
| RoHS Information | Cert of Compliance | |
| Online Catalog | DRR-DTH and DRT-DTH Series | |
| Category | Switches | |
| Family | Magnetic, Reed Switches | |
| Manufacturer | Littelfuse Inc. | |
| Series | DRR-DTH | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Glass Body | |
| Circuit | SPDT | |
| Operate Range | 50 ~ 55AT | |
| Release Range | - | |
| Current - Switching | 350mA (AC), 500mA (DC) | |
| Voltage - Switching AC | 350V | |
| Voltage - Switching DC | 500V | |
| Power - Rated | 30W | |
| Operate Time | 4.5ms | |
| Release Time | 7ms | |
| Mounting Type | Through Hole | |
| Termination Style | Axial | |
| Length - Overall | 3.375" (85.73mm) | |
| Size - Body | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | |
| Height Above Board | - | |
| Operating Temperature | -20°C ~ 125°C | |
| Capacitance | 2.0pF | |
| Current - Carry | 3A (DC) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DRR-DTH-50-55 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DRR-DTH-50-55 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of DRR-DTH-50-55 is new and unused, you can buy DRR-DTH-50-55 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRR-DTH-50-55.
