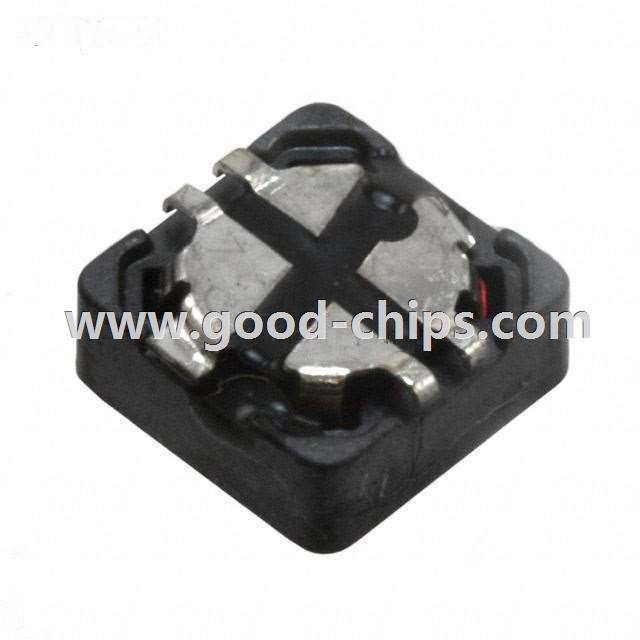

| Manufacturer Part Number: | DRQ73-150-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Arrays, Signal Transformers |
| Available Quantity: | 23860 Pieces |
| Unit Price: | Quote by Email |
| Description: | Shielded 2 Coil Inductor Array 60.04µH Inductance - Connected in Series 15.01µH Inductance - Connected in Parallel 84.4 mOhm DC Resistance (DCR) - Parallel 1.83A Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DRQ73-150-R Datasheet |
| Internal Part Number | 898-DRQ73-150-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SEPIC Converter Shielded Drum Core Inductor Coiltronics DR Series | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | DRQ Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Arrays, Signal Transformers | |
| Manufacturer | Eaton | |
| Series | DRQ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 60.04µH | |
| Inductance - Connected In Parallel | 15.01µH | |
| Tolerance | ±20% | |
| Current Rating - Parallel | 1.83A | |
| Current Rating - Series | 916mA | |
| Current Saturation - Parallel | 2.05A | |
| Current Saturation - Series | 1.03A | |
| DC Resistance (DCR) - Parallel | 84.4 mOhm | |
| DC Resistance (DCR) - Series | 339 mOhm | |
| Shielding | Shielded | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) | |
| Height | 0.140" (3.55mm) | |
| Standard Package | 1,350 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DRQ73-150-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DRQ73-150-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of DRQ73-150-R is new and unused, you can buy DRQ73-150-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRQ73-150-R.
