Manufacturer Part Number: | DRQ125-330-R |
---|---|
Manufacturer: | Eaton |
Product Category: | Arrays, Signal Transformers |
Available Quantity: | 10210 Pieces |
Unit Price: | Quote by Email |

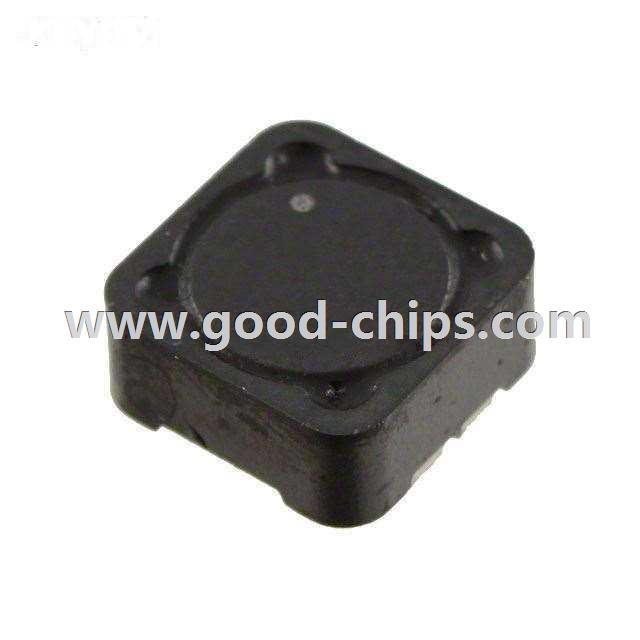

Description: | Shielded 2 Coil Inductor Array 135µH Inductance - Connected in Series 33.74µH Inductance - Connected in Parallel 50.5 mOhm DC Resistance (DCR) - Parallel 3.28A Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DRQ125-330-R Datasheet |
Internal Part Number | 898-DRQ125-330-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SEPIC Converter Shielded Drum Core Inductor Coiltronics DR Series | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | DRQ Series | |
Category | Inductors, Coils, Chokes | |
Family | Arrays, Signal Transformers | |
Manufacturer | Eaton | |
Series | DRQ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Number of Coils | 2 | |
Inductance - Connected In Series | 135µH | |
Inductance - Connected In Parallel | 33.74µH | |
Tolerance | ±20% | |
Current Rating - Parallel | 3.28A | |
Current Rating - Series | 1.64A | |
Current Saturation - Parallel | 3.84A | |
Current Saturation - Series | 1.92A | |
DC Resistance (DCR) - Parallel | 50.5 mOhm | |
DC Resistance (DCR) - Series | 203 mOhm | |
Shielding | Shielded | |
Operating Temperature | -40°C ~ 125°C | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | |
Height | 0.236" (6.00mm) | |
Standard Package | 600 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DRQ125-330-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
