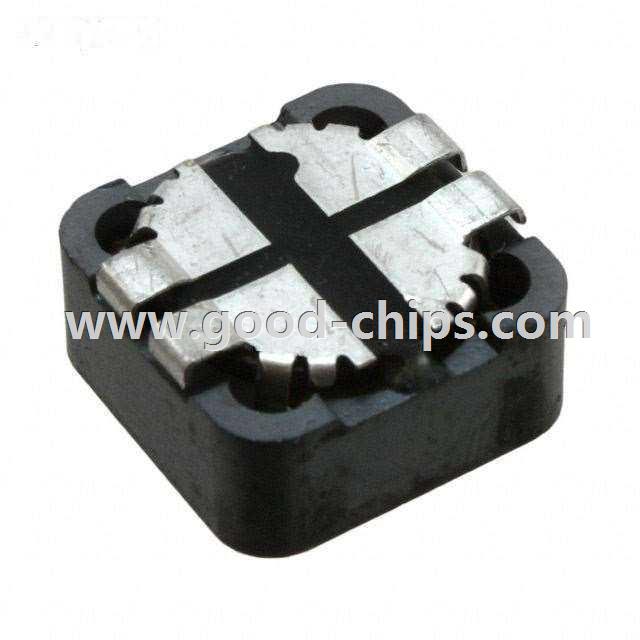

Manufacturer Part Number: | DRQ125-100-R |
---|---|
Manufacturer: | Eaton |
Product Category: | Arrays, Signal Transformers |
Available Quantity: | 13210 Pieces |
Unit Price: | Quote by Email |
Description: | Shielded 2 Coil Inductor Array 38.62µH Inductance - Connected in Series 9.654µH Inductance - Connected in Parallel 18.9 mOhm DC Resistance (DCR) - Parallel 5.35A Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DRQ125-100-R Datasheet |
Internal Part Number | 898-DRQ125-100-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SEPIC Converter Shielded Drum Core Inductor Coiltronics DR Series | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | DRQ Series | |
Category | Inductors, Coils, Chokes | |
Family | Arrays, Signal Transformers | |
Manufacturer | Eaton | |
Series | DRQ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Number of Coils | 2 | |
Inductance - Connected In Series | 38.62µH | |
Inductance - Connected In Parallel | 9.654µH | |
Tolerance | ±20% | |
Current Rating - Parallel | 5.35A | |
Current Rating - Series | 2.67A | |
Current Saturation - Parallel | 7.17A | |
Current Saturation - Series | 3.59A | |
DC Resistance (DCR) - Parallel | 18.9 mOhm | |
DC Resistance (DCR) - Series | 75.7 mOhm | |
Shielding | Shielded | |
Operating Temperature | -40°C ~ 125°C | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | |
Height | 0.236" (6.00mm) | |
Standard Package | 600 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DRQ125-100-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DRQ125-100-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of DRQ125-100-R is new and unused, you can buy DRQ125-100-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRQ125-100-R.
