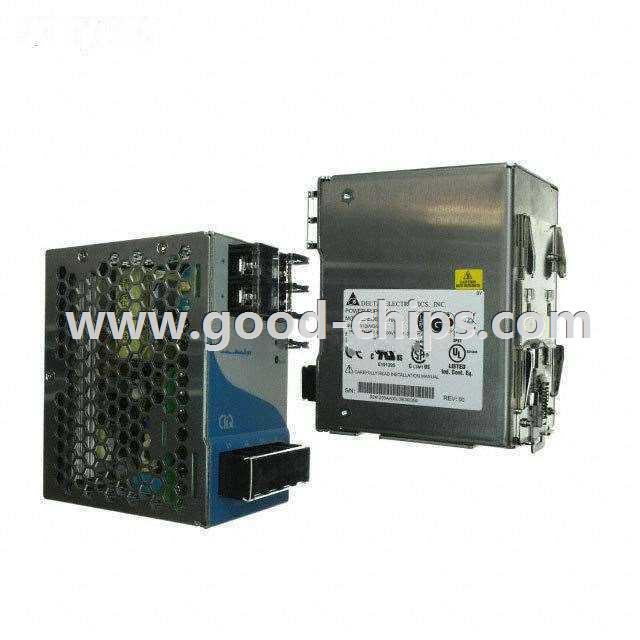

| Manufacturer Part Number: | DRP024V120W3AA |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 24V 120W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DRP024V120W3AA Datasheet |
| Internal Part Number | 898-DRP024V120W3AA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | DRP024VyyyWyAA ATEX Cert DRP024VI20W3Ax CB Test Cert DRP024V120W3Ax EC Declaration of Conformity DRP024VyyyW3Ay CSA Certificate DRP024V120W3AA Hazloc Cert DRP024V120W3Ax SIQ Cert Standard Power Supplies UL Cert | |
| Product Training Modules | CliQ and CliQ II Series: DIN Rail Power Supplies | |
| Featured Product | CliQ Series DC/DC Converters – Delta Product Groups | |
| 3D Model | DRP024V120W3BA.stp | |
| 2D Drawing | DRP024V120W3AA.dxf | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | CliQ | |
| Part Status | Obsolete | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 320 ~ 575 VAC | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 5A | |
| Power (Watts) | 120W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 4kV (4000V) | |
| Efficiency | 86% | |
| Operating Temperature | -20°C ~ 75°C (With Derating) | |
| Features | Adjustable Output, DC Input Capable, Load Sharing, Universal Input | |
| Mounting Type | DIN Rail | |
| Size / Dimension | 4.67" L x 2.76" W x 4.76" H (118.5mm x 70.0mm x 121.0mm) | |
| Minimum Load Required | - | |
| Approvals | cCSAus, CE, cULus, cURus | |
| Power (Watts) - Max | 120W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DRP024V120W3AA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DRP024V120W3AA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of DRP024V120W3AA is new and unused, you can buy DRP024V120W3AA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRP024V120W3AA.
