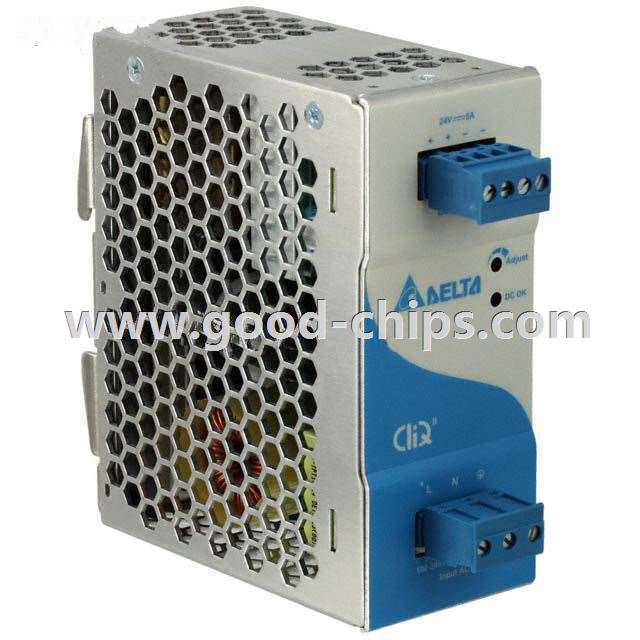

| Manufacturer Part Number: | DRP024V120W1BA |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 24V 120W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DRP024V120W1BA Datasheet |
| Internal Part Number | 898-DRP024V120W1BA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | DRP024V120W1Bx CB Test Cert DRP024V120W1Bx EC Declaration of Conformity DRP024V120W1xx CSA Certificate DRP0yyVyyyW1yy Hazloc Cert DRP024V120W1xx SIQ Cert Standard Power Supplies UL Cert DRP024V120W1BA ATEX Cert | |
| Product Training Modules | CliQ and CliQ II Series: DIN Rail Power Supplies CliQ Series of DIN Rail Power Supplies | |
| Featured Product | DC/DC Converters – Delta Product Groups CliQ II Series Power Management Solutions | |
| 3D Model | DRP024V120W1Bx.stp | |
| 2D Drawing | DRP024V120W1Bx.dxf | |
| Online Catalog | CliQ II Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | CliQ II | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 5A | |
| Power (Watts) | 120W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 4kV (4000V) | |
| Efficiency | 90% | |
| Operating Temperature | -20°C ~ 85°C (With Derating) | |
| Features | Adjustable Output, DC Input Capable, IP20, Load Sharing, PFC, Universal Input | |
| Mounting Type | DIN Rail | |
| Size / Dimension | 4.87" L x 1.97" W x 4.76" H (123.7mm x 50.0mm x 121.0mm) | |
| Minimum Load Required | - | |
| Approvals | CB, CCC, cCSAus, CE, cULus, cURus | |
| Power (Watts) - Max | 120W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DRP024V120W1BA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DRP024V120W1BA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of DRP024V120W1BA is new and unused, you can buy DRP024V120W1BA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRP024V120W1BA.
