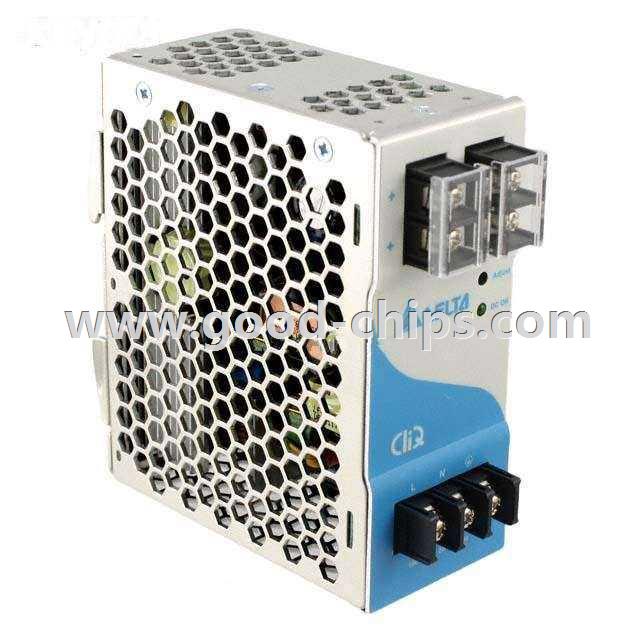

Manufacturer Part Number: | DRP012V100W1AA |
---|---|
Manufacturer: | Delta Electronics |
Product Category: | AC DC Converters |
Available Quantity: | 9057 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 12V 100W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DRP012V100W1AA Datasheet |
Internal Part Number | 898-DRP012V100W1AA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | DRP0yyVyyyW1yy, DRR-y0A ATEX Cert DRP012V100W1Ax CB Test Cert DRP012V100W1Ax EC Declaration of Conformity DRP012V100W1xx CSA Certificate DRP0yyVyyyW1yy Hazloc Cert DRP012V100W1xx TUV Cert Standard Power Supplies UL Cert | |
Product Training Modules | CliQ and CliQ II Series: DIN Rail Power Supplies CliQ Series of DIN Rail Power Supplies | |
Featured Product | CliQ Series DC/DC Converters – Delta Product Groups Power Management Solutions | |
3D Model | DRP012V100W1AA.stp | |
2D Drawing | DRP012V100W1AA.dxf | |
Online Catalog | CliQ Series - 100W | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | AC DC Converters | |
Manufacturer | Delta Electronics | |
Series | CliQ | |
Part Status | Active | |
Type | Enclosed | |
Number of Outputs | 1 | |
Voltage - Input | 85 ~ 264 VAC | |
Voltage - Output 1 | 12V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 8.33A | |
Power (Watts) | 100W | |
Applications | ITE (Commercial) | |
Voltage - Isolation | 4kV (4000V) | |
Efficiency | 87% | |
Operating Temperature | -20°C ~ 75°C (With Derating) | |
Features | Adjustable Output, DC Input Capable, Load Sharing, Universal Input | |
Mounting Type | DIN Rail | |
Size / Dimension | 4.76" L x 1.97" W x 4.65" H (121.0mm x 50.0mm x 118.2mm) | |
Minimum Load Required | - | |
Approvals | CB, cCSAus, CE, cULus, cURus, TUV | |
Power (Watts) - Max | 100W | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DRP012V100W1AA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DRP012V100W1AA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of DRP012V100W1AA is new and unused, you can buy DRP012V100W1AA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRP012V100W1AA.
