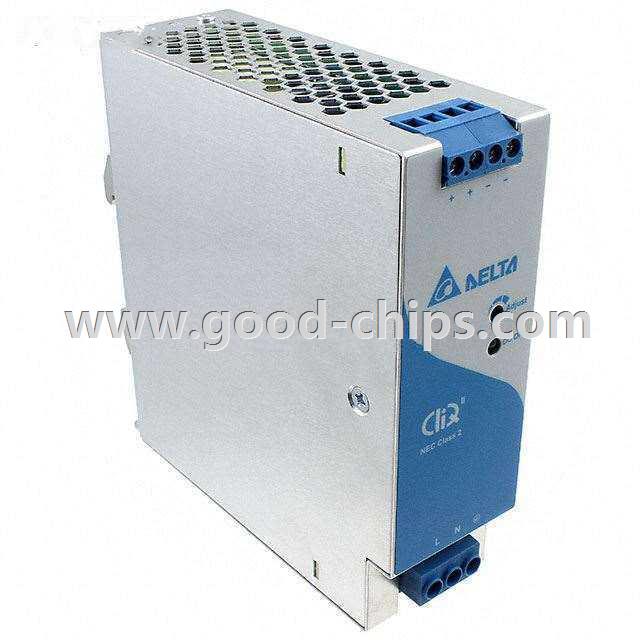

| Manufacturer Part Number: | DRP-24V100W1NN |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 24V 91W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DRP-24V100W1NN Datasheet |
| Internal Part Number | 898-DRP-24V100W1NN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | DRP-24VI00W1Nx CB Test Cert DRP-24V100W1Nx EC Declaration of Conformity DRP-24V100W1Nx CSA Certificate DRP-24V100W1Nx SIQ Cert Standard Power Supplies UL Cert | |
| Product Training Modules | CliQ Series of DIN Rail Power Supplies | |
| Featured Product | CliQ II Series Power Management Solutions | |
| 3D Model | DRP-24V100W1NN.stp | |
| 2D Drawing | DRP-24V100W1NN.dxf | |
| Online Catalog | CliQ II Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | CliQ II | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 3.8A | |
| Power (Watts) | 100W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 4kV (4000V) | |
| Efficiency | 89% | |
| Operating Temperature | -25°C ~ 80°C (With Derating) | |
| Features | Adjustable Output, DC Input Capable, IP20, Load Sharing, PFC, Universal Input | |
| Mounting Type | DIN Rail | |
| Size / Dimension | 4.88" L x 1.57" W x 4.88" H (124.0mm x 40.0mm x 124.0mm) | |
| Minimum Load Required | - | |
| Approvals | CB, CE, CSA, cULus, cURus | |
| Power (Watts) - Max | 91W | |
| Standard Package | 24 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DRP-24V100W1NN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DRP-24V100W1NN is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of DRP-24V100W1NN is new and unused, you can buy DRP-24V100W1NN Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRP-24V100W1NN.
