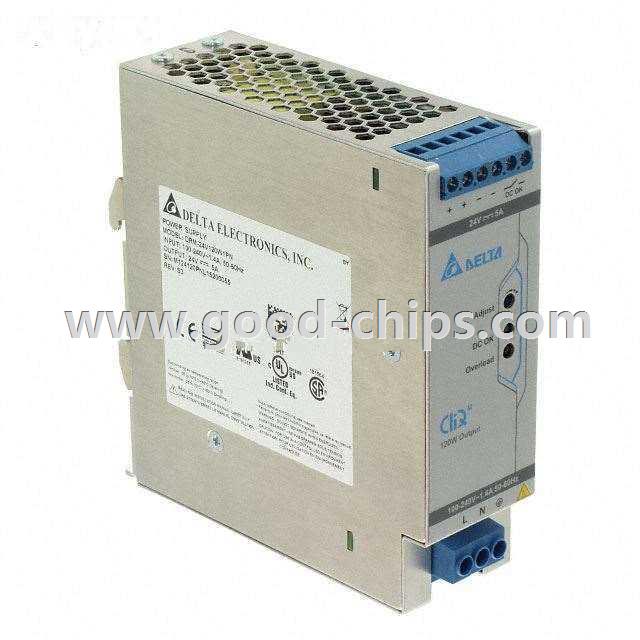

Manufacturer Part Number: | DRM-24V120W1PN |
---|---|
Manufacturer: | Delta Electronics |
Product Category: | AC DC Converters |
Available Quantity: | 9026 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 24V 120W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DRM-24V120W1PN Datasheet |
Internal Part Number | 898-DRM-24V120W1PN | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | DRM-24V120W1Px CB Test Cert DRM-24V120W1Px EC Declaration of Conformity DRM-24V120W1Px CSA Certificate Standard Power Supplies UL Cert DRM-24V120W1Px SIQ Cert | |
Product Training Modules | CliQ Series of DIN Rail Power Supplies | |
Featured Product | Power Management Solutions | |
3D Model | DRM-24V120W1PN.stp | |
2D Drawing | DRM-24V120W1PN.dxf | |
Online Catalog | CliQ M Series | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | AC DC Converters | |
Manufacturer | Delta Electronics | |
Series | CliQ M | |
Part Status | Active | |
Type | Enclosed | |
Number of Outputs | 1 | |
Voltage - Input | 85 ~ 264 VAC | |
Voltage - Output 1 | 24V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 5A | |
Power (Watts) | 120W | |
Applications | ITE (Commercial) | |
Voltage - Isolation | 4.5kV (4500V) | |
Efficiency | 92.8% | |
Operating Temperature | -25°C ~ 70°C | |
Features | DC Input Capable, IP20 Universal Input | |
Mounting Type | DIN Rail | |
Size / Dimension | 4.60" L x 1.57" W x 4.88" H (117.0mm x 40.0mm x 124.0mm) | |
Minimum Load Required | - | |
Approvals | CB, CE, CSA, cULus, cURus | |
Power (Watts) - Max | 120W | |
Standard Package | 24 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DRM-24V120W1PN | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DRM-24V120W1PN is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of DRM-24V120W1PN is new and unused, you can buy DRM-24V120W1PN Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRM-24V120W1PN.
