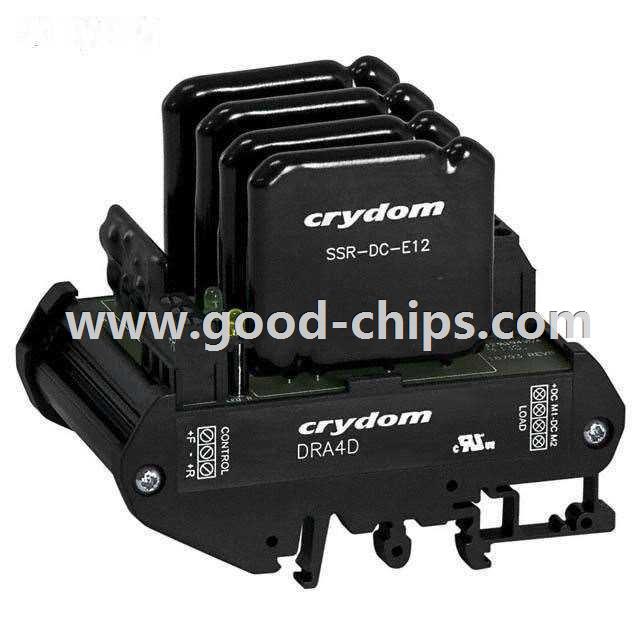

| Manufacturer Part Number: | DRA4D100E12 |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Solid State Relays |
| Available Quantity: | 9043 Pieces |
| Unit Price: | Quote by Email |
| Description: | Solid State Contactor SPST x 4 (H-Bridge) Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DRA4D100E12 Datasheet |
| Internal Part Number | 898-DRA4D100E12 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Declaration of Conformity | |
| 3D Model | DRA4D Series.dwg DRA4D Series.sat DRA4D Series.stp | |
| Online Catalog | DRA4D Series | |
| Category | Relays | |
| Family | Solid State Relays | |
| Manufacturer | Crydom Co. | |
| Series | DRA4D | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPST x 4 (H-Bridge) | |
| Output Type | DC | |
| On-State Resistance (Max) | 11 mOhm | |
| Load Current | 12A | |
| Voltage - Input | 15 ~ 32VDC | |
| Voltage - Load | 1 ~ 100 V | |
| Mounting Type | DIN Rail | |
| Termination Style | Screw Terminal | |
| Package / Case | Module | |
| Supplier Device Package | - | |
| Relay Type | Contactor | |
| Standard Package | 5 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DRA4D100E12 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DRA4D100E12 is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of DRA4D100E12 is new and unused, you can buy DRA4D100E12 Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRA4D100E12.
