| Manufacturer Part Number: | DRA3P48C2 |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Solid State Relays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

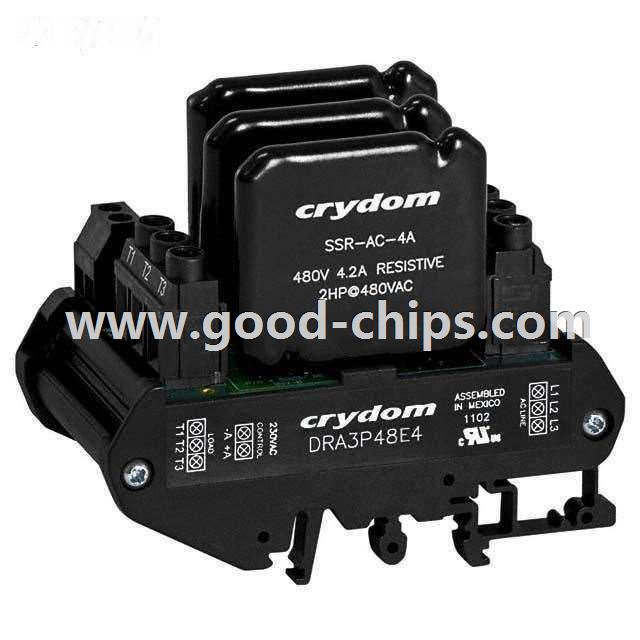

| Description: | Solid State Relay 3PST (3 Form A) Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DRA3P48C2 Datasheet |
| Internal Part Number | 898-DRA3P48C2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Declaration of Conformity | |
| 3D Model | DRA3P Series, AC.sat DRA3P Series, AC.dwg DRA3P Series, AC.stp | |
| Category | Relays | |
| Family | Solid State Relays | |
| Manufacturer | Crydom Co. | |
| Series | DRA3P | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | 3PST (3 Form A) | |
| Output Type | AC, Zero Cross | |
| On-State Resistance (Max) | - | |
| Load Current | 2.4A | |
| Voltage - Input | 36 ~ 60VAC | |
| Voltage - Load | 48 ~ 510 V | |
| Mounting Type | DIN Rail | |
| Termination Style | Screw Terminal | |
| Package / Case | Module | |
| Supplier Device Package | - | |
| Relay Type | Relay | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DRA3P48C2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DRA3P48C2 is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of DRA3P48C2 is new and unused, you can buy DRA3P48C2 Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRA3P48C2.
