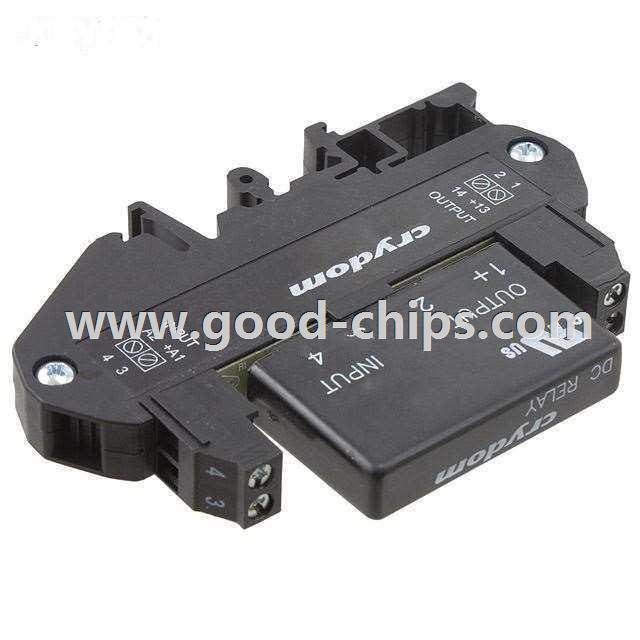

Manufacturer Part Number: | DRA1-MPDCD3 |
---|---|
Manufacturer: | Crydom Co. |
Product Category: | Solid State Relays |
Available Quantity: | 9282 Pieces |
Unit Price: | Quote by Email |
Description: | Solid State Relay SPST-NO (1 Form A) Module |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DRA1-MPDCD3 Datasheet |
Internal Part Number | 898-DRA1-MPDCD3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Declaration of Conformity | |
Product Training Modules | Solid State Relays | |
3D Model | DRA1-Mxxxx Series.sat DRA1-Mxxxx Series.dwg DRA1-Mxxxx Series.stp | |
Online Catalog | DRA Series | |
Category | Relays | |
Family | Solid State Relays | |
Manufacturer | Crydom Co. | |
Series | DRA | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | SPST-NO (1 Form A) | |
Output Type | DC | |
On-State Resistance (Max) | - | |
Load Current | 3A | |
Voltage - Input | 3 ~ 32VDC | |
Voltage - Load | 3 ~ 60 V | |
Mounting Type | DIN Rail | |
Termination Style | Screw Terminal | |
Package / Case | Module | |
Supplier Device Package | - | |
Relay Type | Relay | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DRA1-MPDCD3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DRA1-MPDCD3 is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of DRA1-MPDCD3 is new and unused, you can buy DRA1-MPDCD3 Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DRA1-MPDCD3.
