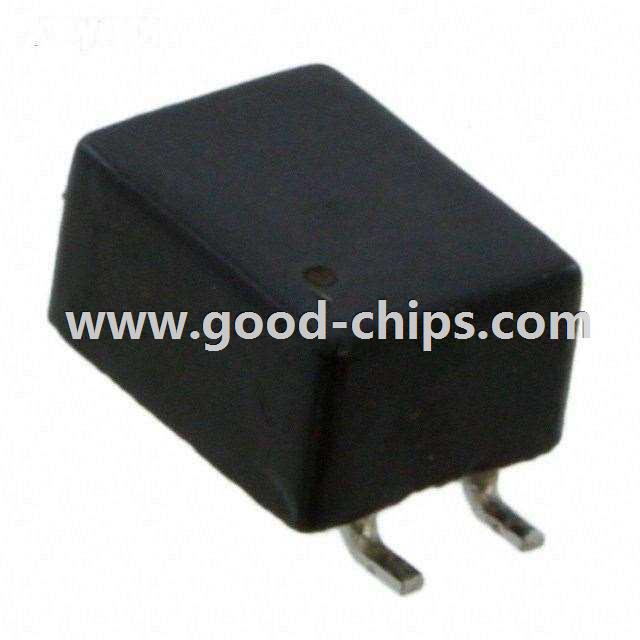

| Manufacturer Part Number: | DR331-474BE |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 470µH @ 100kHz 2 Line Common Mode Choke Surface Mount 500mA DCR 280 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DR331-474BE Datasheet |
| Internal Part Number | 898-DR331-474BE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | DR331 Series Material Declaration | |
| 3D Model | DR331.stp | |
| PCN Assembly/Origin | Magnetic products Oct/2013 | |
| Online Catalog | DR331 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Bourns Inc. | |
| Series | DR331 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 470µH @ 100kHz | |
| Current Rating (Max) | 500mA | |
| DC Resistance (DCR) (Max) | 280 mOhm | |
| Voltage Rating - DC | 80V | |
| Voltage Rating - AC | 42V | |
| Operating Temperature | -40°C ~ 135°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.287" L x 0.213" W (7.30mm x 5.40mm) | |
| Height (Max) | 0.197" (5.00mm) | |
| Package / Case | Horizontal, 4 Flat Lead | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DR331-474BE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DR331-474BE is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of DR331-474BE is new and unused, you can buy DR331-474BE Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DR331-474BE.
