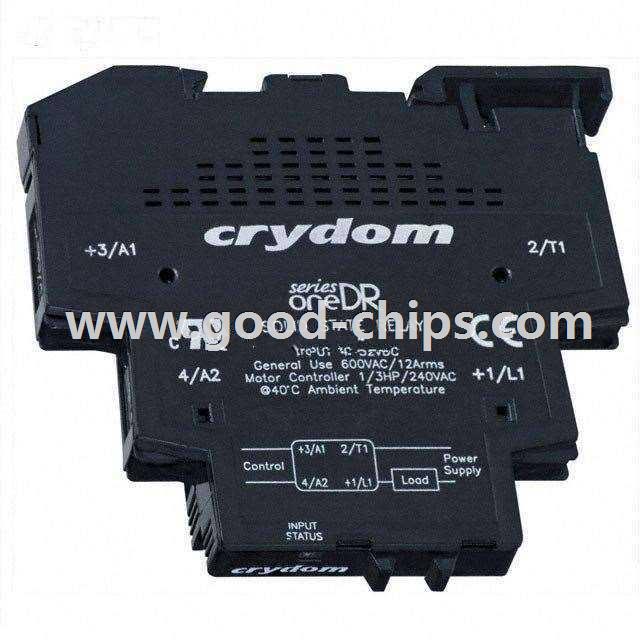

Manufacturer Part Number: | DR24D12R |
---|---|
Manufacturer: | Crydom Co. |
Product Category: | Solid State Relays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Solid State Relay SPST-NO (1 Form A) Module |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DR24D12R Datasheet |
Internal Part Number | 898-DR24D12R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Declaration of Conformity | |
3D Model | DR Series, 1 12 Amps.sat DR Series, 1 12 Amps.dwg DR Series, 1 12 Amps.stp | |
Online Catalog | DR Series | |
Category | Relays | |
Family | Solid State Relays | |
Manufacturer | Crydom Co. | |
Series | DR | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | SPST-NO (1 Form A) | |
Output Type | AC | |
On-State Resistance (Max) | - | |
Load Current | 12A | |
Voltage - Input | 4 ~ 32VDC | |
Voltage - Load | 24 ~ 280 V | |
Mounting Type | DIN Rail | |
Termination Style | Screw Terminal | |
Package / Case | Module | |
Supplier Device Package | - | |
Relay Type | Relay | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DR24D12R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DR24D12R is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of DR24D12R is new and unused, you can buy DR24D12R Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DR24D12R.
