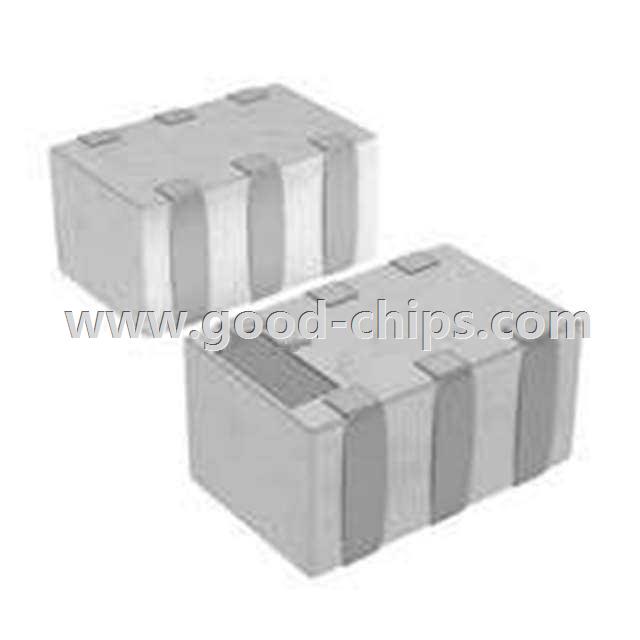

| Manufacturer Part Number: | DPX201990DT-4151A2 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | RF Diplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Diplexor 800MHz ~ 945MHz / 1.57GHz ~ 1.99GHz 0805 (2012 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DPX201990DT-4151A2 Datasheet |
| Internal Part Number | 898-DPX201990DT-4151A2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Multilayer Diplexers | |
| Category | RF/IF and RFID | |
| Family | RF Diplexers | |
| Manufacturer | TDK Corporation | |
| Series | DPX | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Bands (Low / High) | 800MHz ~ 945MHz / 1.57GHz ~ 1.99GHz | |
| Low Band Attenuation (min / max dB) | 25.00dB / 31.00dB | |
| High Band Attenuation (min / max dB) | 23.00dB / 28.00dB | |
| Return Loss (Low Band / High Band) | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 0805 (2012 Metric) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DPX201990DT-4151A2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DPX201990DT-4151A2 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of DPX201990DT-4151A2 is new and unused, you can buy DPX201990DT-4151A2 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DPX201990DT-4151A2.
