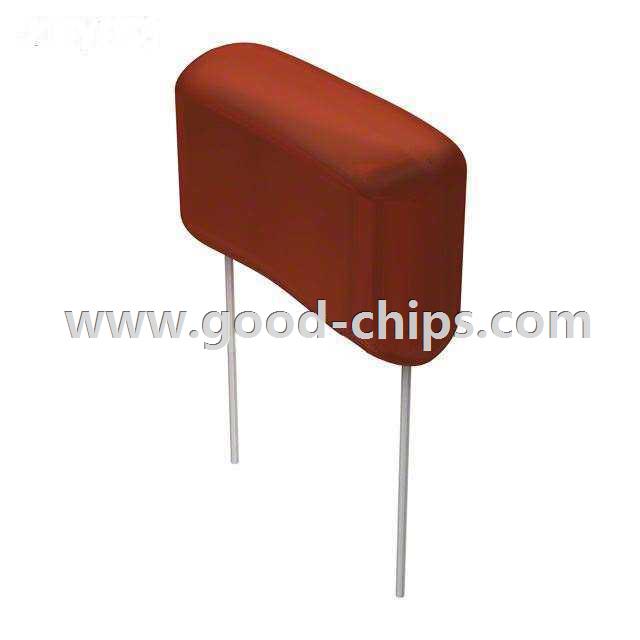

| Manufacturer Part Number: | DPPM20S1K |
|---|---|
| Manufacturer: | Cornell Dubilier Electronics (CDE) |
| Product Category: | Film Capacitors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10000pF Film Capacitor 500V 2000V (2kV) Polypropylene (PP), Metallized Radial 1.220" L x 0.551" W (31.00mm x 14.00mm) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DPPM20S1K Datasheet |
| Internal Part Number | 898-DPPM20S1K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Manufacturer | Cornell Dubilier Electronics (CDE) | |
| Series | DPPM | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Capacitance | 10000pF | |
| Tolerance | ±10% | |
| Voltage Rating - AC | 500V | |
| Voltage Rating - DC | 2000V (2kV) | |
| Dielectric Material | Polypropylene (PP), Metallized | |
| ESR (Equivalent Series Resistance) | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 1.220" L x 0.551" W (31.00mm x 14.00mm) | |
| Height - Seated (Max) | 0.925" (23.50mm) | |
| Termination | PC Pins | |
| Lead Spacing | 1.043" (26.50mm) | |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber | |
| Features | - | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DPPM20S1K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DPPM20S1K is in stock for immediate shipping now. We are the distributor of Cornell Dubilier Electronics (CDE) all series components. The condition of DPPM20S1K is new and unused, you can buy DPPM20S1K Cornell Dubilier Electronics (CDE) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DPPM20S1K.
