Manufacturer Part Number: | DPL02 |
---|---|
Manufacturer: | Apem Inc. |
Product Category: | DIP Switches |
Available Quantity: | 9016 Pieces |
Unit Price: | Quote by Email |

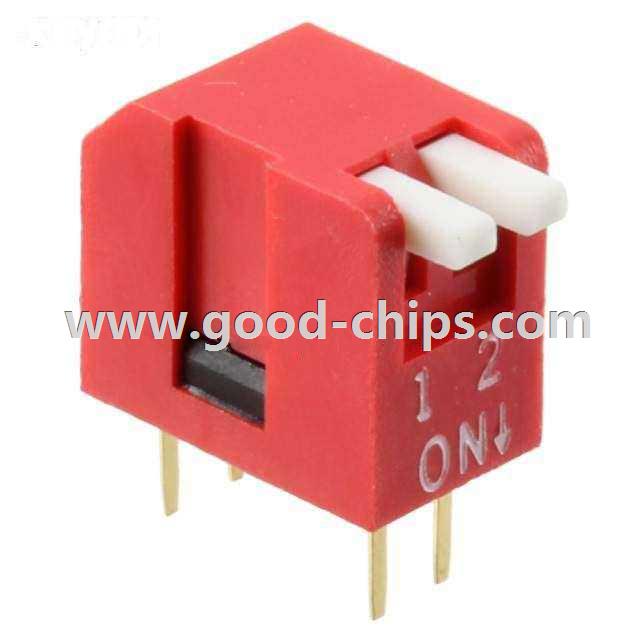

Description: | Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DPL02 Datasheet |
Internal Part Number | 898-DPL02 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | DP Series | |
Category | Switches | |
Family | DIP Switches | |
Manufacturer | Apem Inc. | |
Series | DPL | |
Packaging | Tube | |
Part Status | Active | |
Circuit | SPST | |
Number of Positions | 2 | |
Current Rating | 50mA | |
Voltage Rating | 24VDC | |
Actuator Type | Piano | |
Actuator Level | Raised | |
Contact Material | Phosphor Bronze | |
Contact Finish | Gold | |
Height Above Board | 0.402" (10.20mm) | |
Mounting Type | Through Hole, Right Angle | |
Termination Style | PC Pin | |
Pitch | 0.100" (2.54mm), Full | |
Washable | No | |
Features | Epoxy Sealed Terminals | |
Body Material | Polybutylene Terephthalate (PBT), Glass Filled | |
Length | 0.261" (6.63mm) | |
Operating Temperature | -20°C ~ 70°C | |
Mechanical Life | 5,000 Cycles | |
Electrical Life | 2,000 Cycles | |
Standard Package | 70 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DPL02 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DPL02 is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of DPL02 is new and unused, you can buy DPL02 Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DPL02.
