DPA426R

DPA426R
Manufacturer Part Number:DPA426R
Manufacturer:
Product Category:PMIC - Voltage Regulators - Special Purpose
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:DPA-Switch® Converter, Power Over Ethernet and Telecom Applications Voltage Regulator IC 1 Output TO-263-7C
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):4 (72 Hours)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: DPA426R Datasheet
DPA426R´s Parameters
Internal Part Number898-DPA426R
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Mfg Application NotesDPA-Switch AppNote
PCN Assembly/OriginAssembly Site Addition 15/May/2014
HALT 26/Jan/2016
CategoryIntegrated Circuits (ICs)
FamilyPMIC - Voltage Regulators - Special Purpose
ManufacturerPower Integrations
SeriesDPA-Switch®
PackagingTube
Part StatusActive
ApplicationsConverter, Power Over Ethernet and Telecom Applications
Voltage - Input16 V ~ 75 V
Number of Outputs1
Voltage - Output220V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount

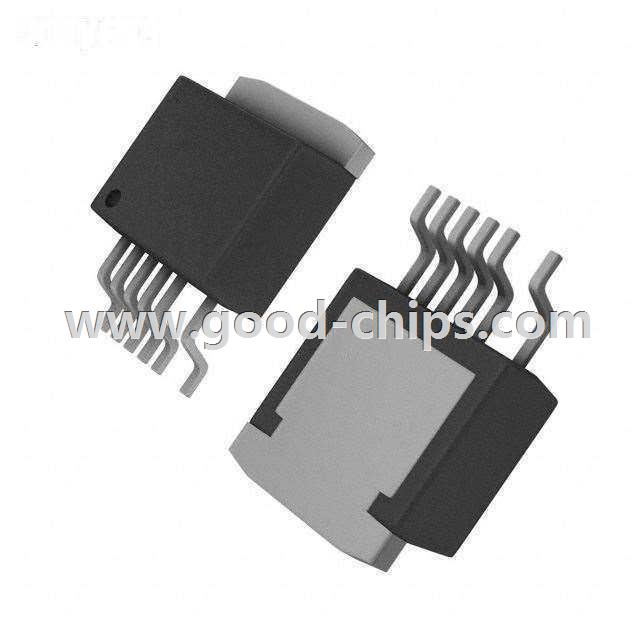

Package / CaseTO-263-7, D²Pak (6 Leads + Tab), TO-263CB
Supplier Device PackageTO-263-7C
Standard Package 50
Weight0.001 KG
ApplicationEmail for details
Replacement PartDPA426R
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

DPA426R is in stock for immediate shipping now. We are the distributor of Power Integrations all series components. The condition of DPA426R is new and unused, you can buy DPA426R Power Integrations with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for DPA426R.
