| Manufacturer Part Number: | DP1RD20JQ1 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | USB, DVI, HDMI Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

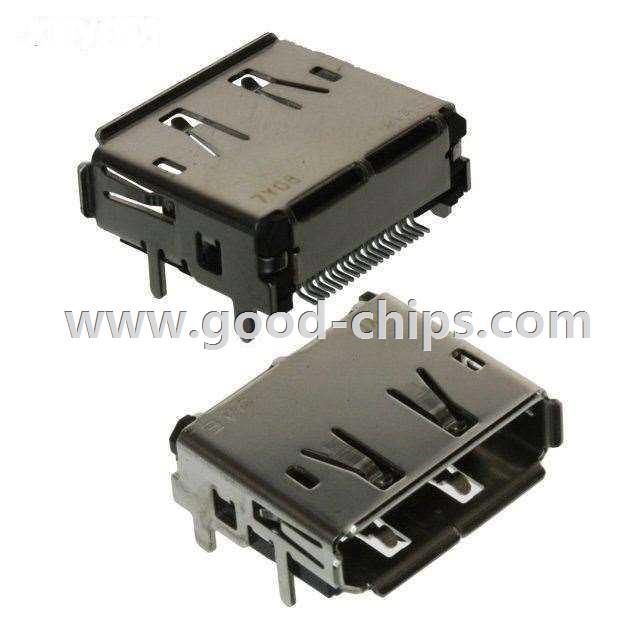

| Description: | DisplayPort Display Port 1.1a Receptacle Connector 20 Position Surface Mount, Right Angle, Horizontal |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DP1RD20JQ1 Datasheet |
| Internal Part Number | 898-DP1RD20JQ1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | USB, DVI, HDMI Connectors | |
| Manufacturer | JAE Electronics | |
| Series | DP1 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Type | DisplayPort | |
| Number of Contacts | 20 | |
| Gender | Receptacle | |
| Specifications | Display Port 1.1a | |
| Mounting Type | Surface Mount, Right Angle, Horizontal | |
| Features | Board Guide | |
| Ingress Protection | - | |
| Standard Package | 120 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DP1RD20JQ1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DP1RD20JQ1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of DP1RD20JQ1 is new and unused, you can buy DP1RD20JQ1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DP1RD20JQ1.
