Manufacturer Part Number: | DP1R020JQ3 |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | USB, DVI, HDMI Connectors |
Available Quantity: | 15622 Pieces |
Unit Price: | Quote by Email |

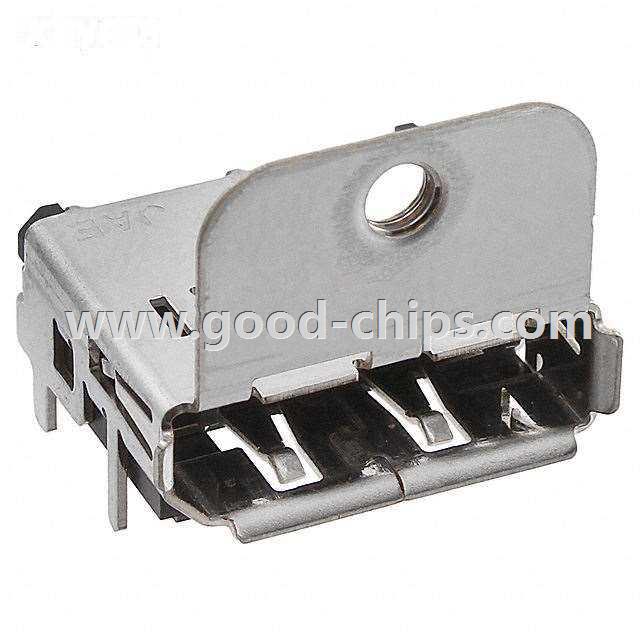

Description: | DisplayPort Display Port 1.1a Receptacle Connector 20 Position Surface Mount, Right Angle, Horizontal |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DP1R020JQ3 Datasheet |
Internal Part Number | 898-DP1R020JQ3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | JAE Electronics - DisplayPort | |
Category | Connectors, Interconnects | |
Family | USB, DVI, HDMI Connectors | |
Manufacturer | JAE Electronics | |
Series | DP1 | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | DisplayPort | |
Number of Contacts | 20 | |
Gender | Receptacle | |
Specifications | Display Port 1.1a | |
Mounting Type | Surface Mount, Right Angle, Horizontal | |
Features | Board Guide, Flange | |
Ingress Protection | - | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DP1R020JQ3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DP1R020JQ3 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of DP1R020JQ3 is new and unused, you can buy DP1R020JQ3 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DP1R020JQ3.
