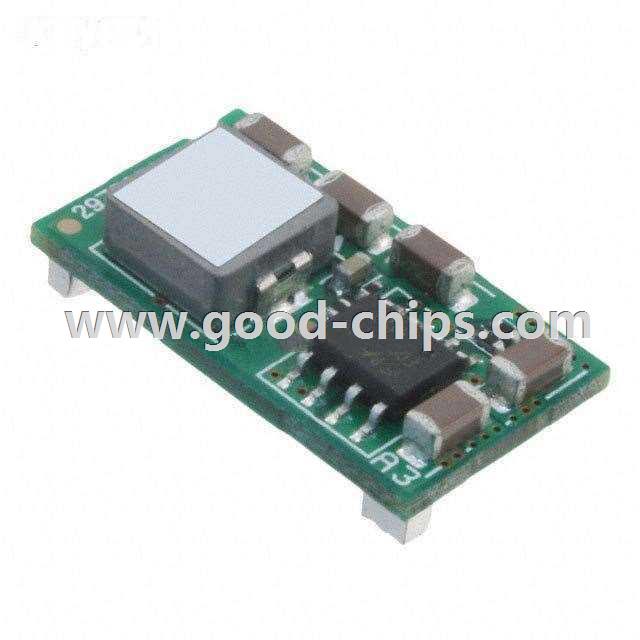

Manufacturer Part Number: | DNT12S0A0S03NFA |
---|---|
Manufacturer: | Delta Electronics |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MODULE POWER DC/DC POL 3A SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DNT12S0A0S03NFA Datasheet |
Internal Part Number | 898-DNT12S0A0S03NFA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | DC/DC Converters – Delta Product Groups DOSA POL Power Modules | |
Online Catalog | Delphi DNT12 Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Delta Electronics | |
Series | Delphi DNT12 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 8.3V | |
Voltage - Input (Max) | 14V | |
Voltage - Output 1 | 0.75 ~ 5.5 V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 3A | |
Power (Watts) - Manufacture Series | 15W | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, UVLO | |
Mounting Type | Surface Mount | |
Package / Case | 5-SMD Module | |
Size / Dimension | 0.80" L x 0.45" W x 0.27" H (20.3mm x 11.4mm x 6.9mm) | |
Operating Temperature | -40°C ~ 125°C | |
Efficiency | 93% | |
Power (Watts) - Max | 16.5W | |
Standard Package | 300 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DNT12S0A0S03NFA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DNT12S0A0S03NFA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of DNT12S0A0S03NFA is new and unused, you can buy DNT12S0A0S03NFA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DNT12S0A0S03NFA.
