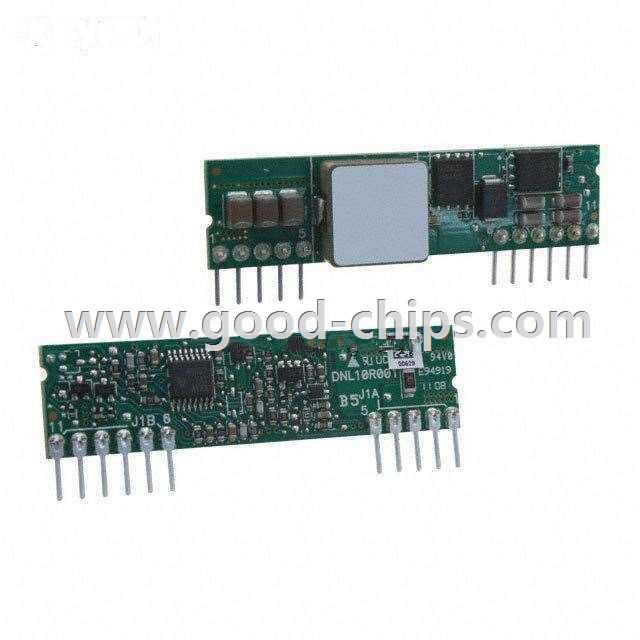

| Manufacturer Part Number: | DNL10S0A0R20PFD |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | POWER MODULE DOSA POL 20A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DNL10S0A0R20PFD Datasheet |
| Internal Part Number | 898-DNL10S0A0R20PFD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | DC/DC Converters – Delta Product Groups | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | Delphi DNL | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 8.3V | |
| Voltage - Input (Max) | 14V | |
| Voltage - Output 1 | 0.75 ~ 5 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 20A | |
| Power (Watts) - Manufacture Series | 100W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 11-SIP Module | |
| Size / Dimension | 2.00" L x 0.37" W x 0.20" H (50.8mm x 9.5mm x 12.7mm) | |
| Operating Temperature | -40°C ~ 120°C | |
| Efficiency | 93.5% | |
| Power (Watts) - Max | 100W | |
| Standard Package | 24 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DNL10S0A0R20PFD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DNL10S0A0R20PFD is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of DNL10S0A0R20PFD is new and unused, you can buy DNL10S0A0R20PFD Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DNL10S0A0R20PFD.
