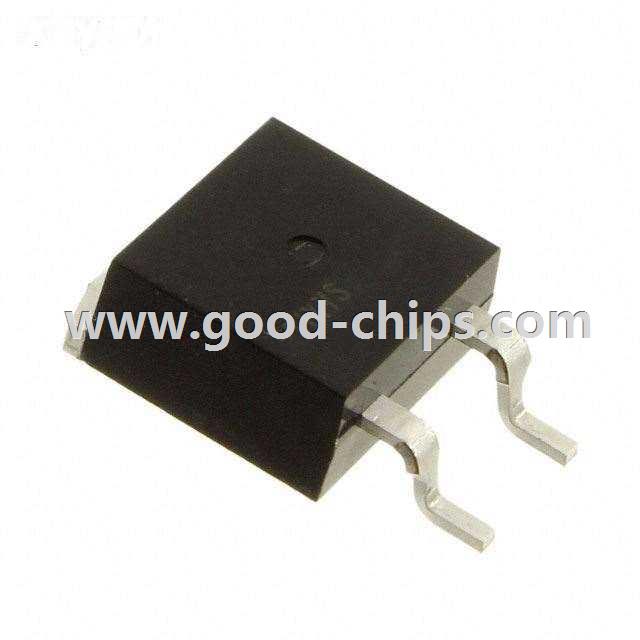

| Manufacturer Part Number: | DNA30E2200PZ |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9810 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE RECT 2200V 30A D2PAK-HV |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DNA30E2200PZ Datasheet |
| Internal Part Number | 898-DNA30E2200PZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | IXYS | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 2200V (2.2kV) | |
| Current - Average Rectified (Io) | 30A | |
| Voltage - Forward (Vf) (Max) @ If | 1.26V @ 30A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 40µA @ 2200V | |
| Capacitance @ Vr, F | 7pF @ 700V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | |
| Supplier Device Package | TO-263 (D2Pak) | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DNA30E2200PZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DNA30E2200PZ is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of DNA30E2200PZ is new and unused, you can buy DNA30E2200PZ IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DNA30E2200PZ.
