| Manufacturer Part Number: | DMTH6010LPD-13 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CHA 60V 13.1A POWERDI |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DMTH6010LPD-13 Datasheet |
| Internal Part Number | 898-DMTH6010LPD-13 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Diodes Incorporated | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | New Product | |
| FET Type | 2 N-Channel (Dual) | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 13.1A (Ta), 47.6A (Tc) | |
| Rds On (Max) @ Id, Vgs | 11 mOhm @ 20A, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 40.2nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 2615pF @ 30V | |
| Power - Max | 2.8W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-PowerTDFN | |

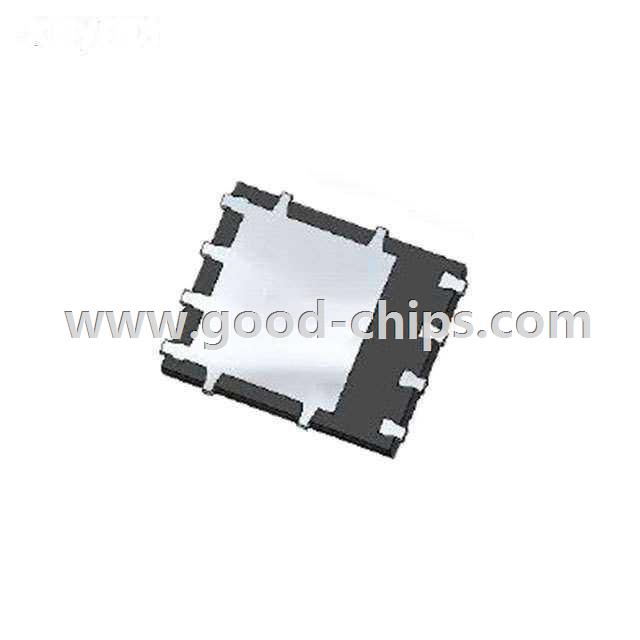

| Supplier Device Package | PowerDI5060-8 | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DMTH6010LPD-13 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DMTH6010LPD-13 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of DMTH6010LPD-13 is new and unused, you can buy DMTH6010LPD-13 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DMTH6010LPD-13.
