| Manufacturer Part Number: | DMP1100UCB4-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 11690 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CHA 12V 2.5A WLB0808 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DMP1100UCB4-7 Datasheet |
| Internal Part Number | 898-DMP1100UCB4-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | P-Channel Diode FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Diodes Incorporated | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Cut Tape (CT) | |
| Part Status | New Product | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Diode (Isolated) | |
| Drain to Source Voltage (Vdss) | 12V | |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) | |
| Rds On (Max) @ Id, Vgs | 83 mOhm @ 3A, 4.5V | |
| Vgs(th) (Max) @ Id | 800mV @ 250µA | |
| Gate Charge (Qg) @ Vgs | 14nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 820pF @ 6V | |
| Power - Max | 670mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

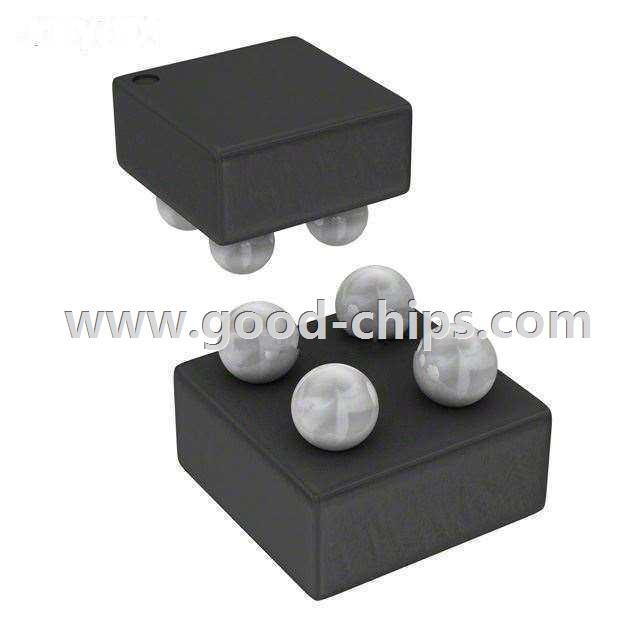

| Package / Case | 4-UFBGA | |
| Supplier Device Package | X2-WLB0808-4 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DMP1100UCB4-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DMP1100UCB4-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of DMP1100UCB4-7 is new and unused, you can buy DMP1100UCB4-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DMP1100UCB4-7.
