Stocking distributor of Electronic Components
Email: [email protected]
| Manufacturer Part Number: | DMN1250UFEL-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET BVDSS: 8V 24V U-QFN1515-1 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DMN1250UFEL-7 Datasheet |
| Internal Part Number | 898-DMN1250UFEL-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 8 N-Channel, Common Gate, Common Source | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 12V | |
| Current - Continuous Drain (Id) @ 25°C | 2A | |
| Rds On (Max) @ Id, Vgs | 450 mOhm @ 200mA, 4.5V | |
| Vgs(th) (Max) @ Id | 1V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 1.9nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 190pF @ 6V | |
| Power - Max | 660mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

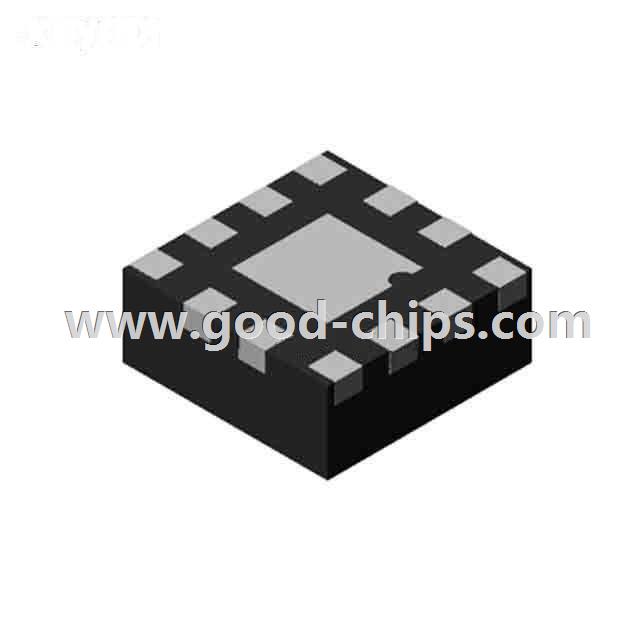

| Package / Case | 12-UFQFN Exposed Pad | |
| Supplier Device Package | U-QFN1515-12 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DMN1250UFEL-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DMN1250UFEL-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of DMN1250UFEL-7 is new and unused, you can buy DMN1250UFEL-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DMN1250UFEL-7.
