| Manufacturer Part Number: | DM330022 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9018 Pieces |
| Unit Price: | Quote by Email |

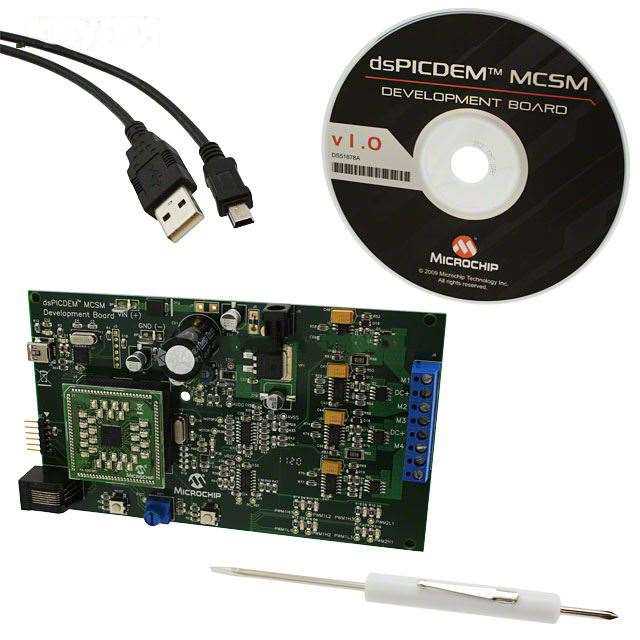

| Description: | dsPIC33F dsPICDEM™ Series Power Management, Motor Control Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DM330022 Datasheet |
| Internal Part Number | 898-DM330022 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Stepper Motor Control with dsPIC DSCs (AN1307) Stepper Motor Control Using the PIC16F684 (AN906) Stepping Motors Fundamentals (AN907) | |
| Design Resources | Ultra-Low Cost Motor Drive Design Development Tool Selector | |
| Reference Design Library | DM330022: Bi-Polar or Unipolar Driver, 0 ~ 80 V | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | dsPICDEM™ Development Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | dsPICDEM™ | |
| Part Status | Active | |
| Main Purpose | Power Management, Motor Control | |
| Embedded | Yes, MCU, 16-Bit | |
| Utilized IC / Part | dsPIC33F | |
| Primary Attributes | - | |
| Secondary Attributes | LED Status Indicators | |
| Supplied Contents | Board, Cable | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DM330022 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DM330022 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM330022 is new and unused, you can buy DM330022 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM330022.
