| Manufacturer Part Number: | DM330017 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

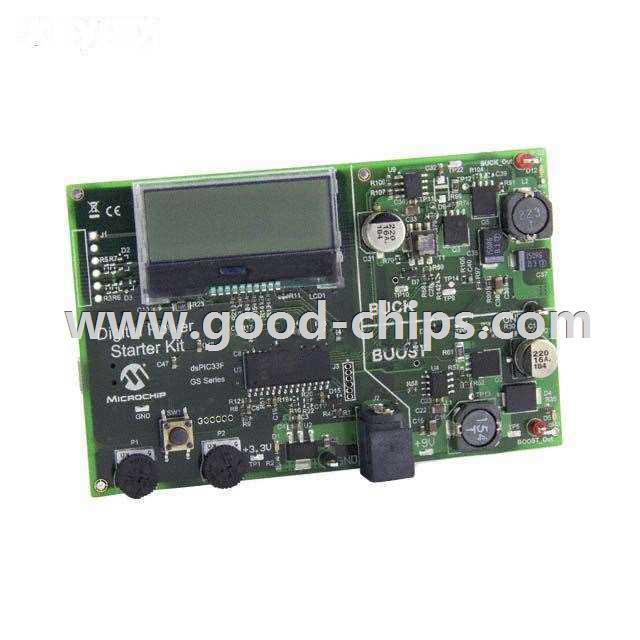

| Description: | dsPIC33FJ09GS302 MPLAB® DC/DC, Step Up or Down 2, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DM330017 Datasheet |
| Internal Part Number | 898-DM330017 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Interleaved Power Factor Correction | |
| Design Resources | Development Tool Selector | |
| Featured Product | DM330017 MPLAB® Starter Kit for Digital Power | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Microchip Technology | |
| Series | MPLAB® | |
| Part Status | Obsolete | |
| Main Purpose | DC/DC, Step Up or Down | |
| Outputs and Type | 2, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 3.3V, 15V | |
| Current - Output | 1.5A, 400mA | |
| Voltage - Input | 7 V ~ 11 V | |
| Regulator Topology | Boost, Buck | |
| Frequency - Switching | 350kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board, Cable, Power Supply | |
| Utilized IC / Part | dsPIC33FJ09GS302 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DM330017 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DM330017 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM330017 is new and unused, you can buy DM330017 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM330017.
