| Manufacturer Part Number: | DM330017-2 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9017 Pieces |
| Unit Price: | Quote by Email |

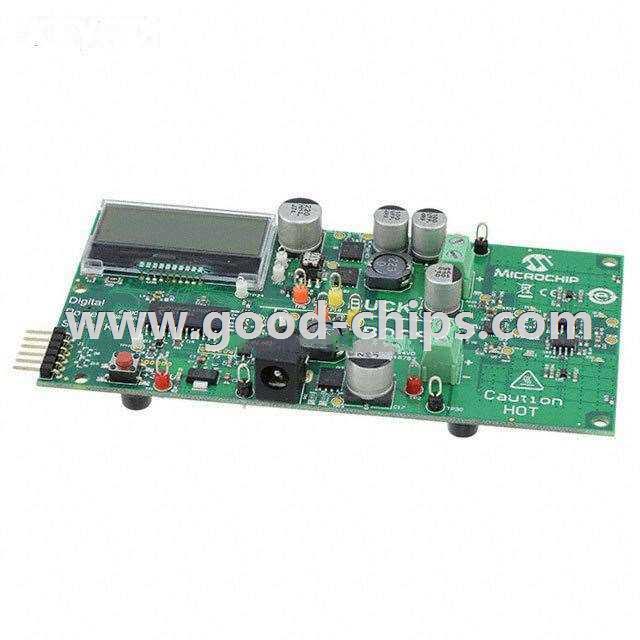

| Description: | dsPIC33EP64GS502 MPLAB® DC/DC, Step Up or Down 2, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DM330017-2 Datasheet |
| Internal Part Number | 898-DM330017-2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MPLAB® Starter Kit for Digital Power | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Microchip Technology | |
| Series | MPLAB® | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Up or Down | |
| Outputs and Type | 2, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 3.3V, 15V | |
| Current - Output | 2.5A, 370mA | |
| Voltage - Input | 7 V ~ 11 V | |
| Regulator Topology | Boost, Buck | |
| Frequency - Switching | 350kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board, Cable, Power Supply | |
| Utilized IC / Part | dsPIC33EP64GS502 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DM330017-2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DM330017-2 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM330017-2 is new and unused, you can buy DM330017-2 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM330017-2.
