| Manufacturer Part Number: | DM330015 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9026 Pieces |
| Unit Price: | Quote by Email |
| Description: | dsPIC33FJ16MC102 mTouch™ Series Power Management, Motor Control Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DM330015 Datasheet |
| Internal Part Number | 898-DM330015 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Motor Control Starter Kit mTouch Capacitive Touch Sensing | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | DM330015 Motor Control Starter Kit with mTouch™ Sensing | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | mTouch™ | |
| Part Status | Active | |
| Main Purpose | Power Management, Motor Control | |
| Embedded | Yes, MCU, 16-Bit | |
| Utilized IC / Part | dsPIC33FJ16MC102 | |
| Primary Attributes | On Board In-Circuit Program/Debug via USB Interface | |
| Secondary Attributes | Capacitive Touch Sliders for Speed Control With LED Indicators | |

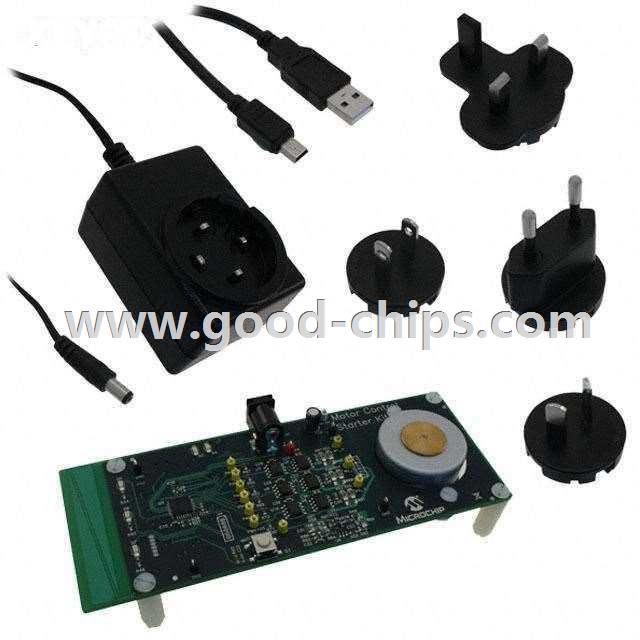

| Supplied Contents | Board, Cable, Power Supply | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DM330015 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DM330015 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM330015 is new and unused, you can buy DM330015 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM330015.
