Manufacturer Part Number: | DM330014 |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation Boards - LED Drivers |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |

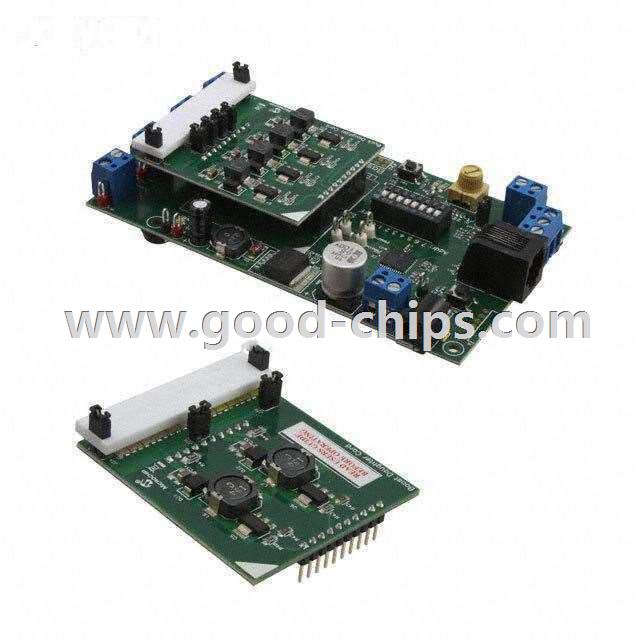

Description: | dsPIC33FJ16GS504 LED Driver Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DM330014 Datasheet |
Internal Part Number | 898-DM330014 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector Lighting Product Selector | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Online Catalog | dsPIC33 Development Kit | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - LED Drivers | |
Manufacturer | Microchip Technology | |
Series | - | |
Part Status | Active | |
Current - Output / Channel | - | |
Outputs and Type | - | |
Voltage - Output | - | |
Features | Dimmable | |
Voltage - Input | 9V | |
Supplied Contents | 3 Boards | |
Utilized IC / Part | dsPIC33FJ16GS504 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DM330014 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DM330014 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM330014 is new and unused, you can buy DM330014 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM330014.
