| Manufacturer Part Number: | DM320011 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |

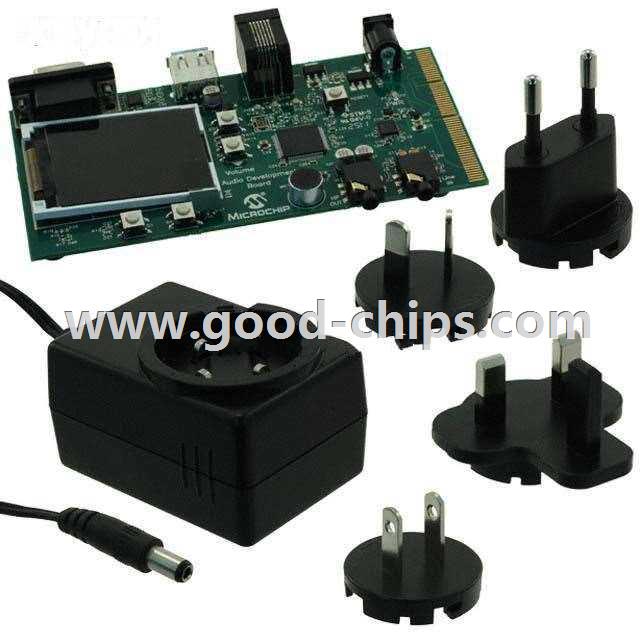

| Description: | PIC32MX795F512 PIC® 32 Series Audio, Audio Processing Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DM320011 Datasheet |
| Internal Part Number | 898-DM320011 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | PIC32 MCUs Audio Development Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | PIC® 32 | |
| Part Status | Active | |
| Main Purpose | Audio, Audio Processing | |
| Embedded | Yes, MCU, 32-Bit | |
| Utilized IC / Part | PIC32MX795F512 | |
| Primary Attributes | USB Type A Interface, MFi Dock Edge Connector | |
| Secondary Attributes | 24-Bit Wolfson CODEC | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DM320011 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DM320011 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM320011 is new and unused, you can buy DM320011 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM320011.
