Manufacturer Part Number: | DM240314 |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |

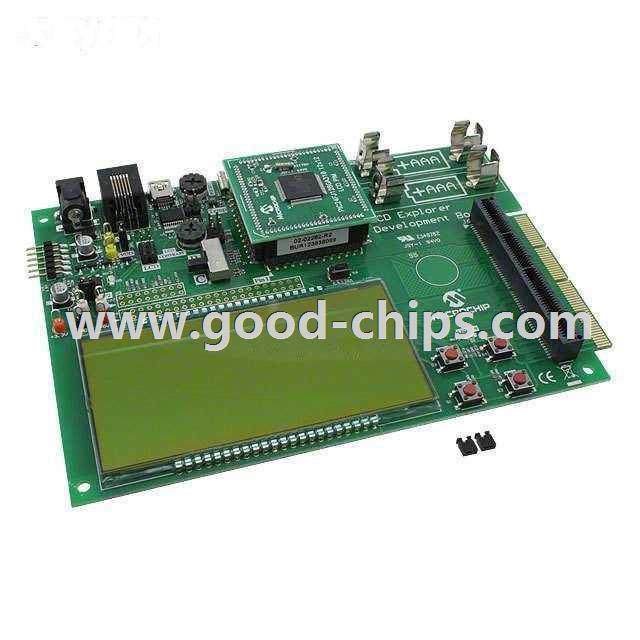

Description: | PIC24FJ128GA310 - Displays, LCD Display Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DM240314 Datasheet |
Internal Part Number | 898-DM240314 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Getting the Lowest Current Consumption from a PIC24F MCU | |
Design Resources | Development Tool Selector | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Online Catalog | DM240314 LCD Explorer Development Board | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Microchip Technology | |
Series | - | |
Part Status | Active | |
Main Purpose | Displays, LCD Display | |
Embedded | Yes, MCU, 16-Bit | |
Utilized IC / Part | PIC24FJ128GA310 | |
Primary Attributes | PICtail™ Plus Expansion Connector | |
Secondary Attributes | 8-Common LCD Board for Evaluation of PIC24F and PIC18F LCD Devices | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DM240314 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DM240314 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM240314 is new and unused, you can buy DM240314 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM240314.
