Manufacturer Part Number: | DM164130-10 |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation Boards - Embedded - MCU, DSP |
Available Quantity: | 9013 Pieces |
Unit Price: | Quote by Email |

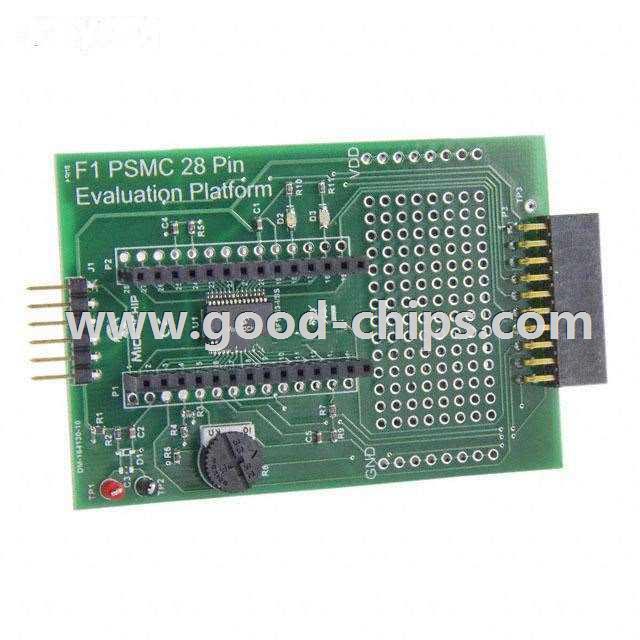

Description: | PIC16F1783 F1 PSMC 28-pin Evaluation Platform PIC® MCU 8-Bit PIC Embedded Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DM164130-10 Datasheet |
Internal Part Number | 898-DM164130-10 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Intelligent Analog Family of MCUs | |
Design Resources | Development Tool Selector | |
Featured Product | F1 PSMC 28-Pin Evaluation Platform | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Online Catalog | F1 PSMC 28-pin Evaluation Platform | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Embedded - MCU, DSP | |
Manufacturer | Microchip Technology | |
Series | PIC® | |
Part Status | Active | |
Board Type | Evaluation Platform | |
Type | MCU 8-Bit | |
Core Processor | PIC | |
Operating System | - | |
Platform | F1 PSMC 28-pin Evaluation Platform | |
For Use With/Related Products | PIC16F1783 | |
Mounting Type | Fixed | |
Contents | Board(s) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DM164130-10 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DM164130-10 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM164130-10 is new and unused, you can buy DM164130-10 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM164130-10.
