| Manufacturer Part Number: | DM164125 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

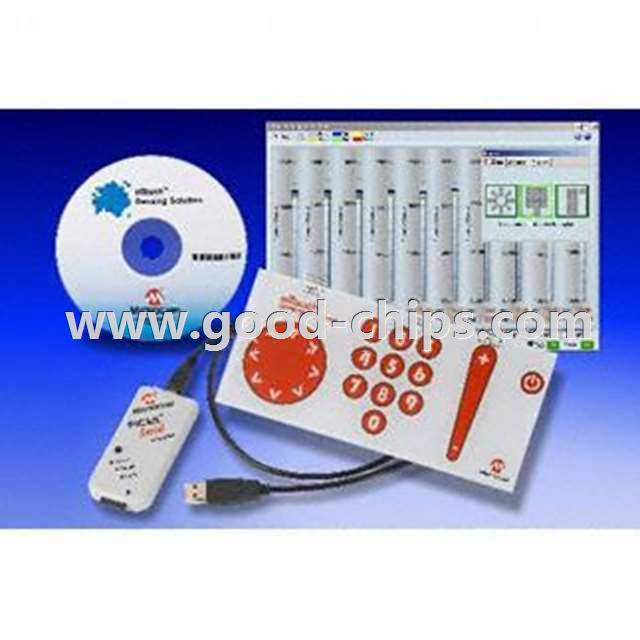

| Description: | PIC16F677, PIC16F887 mTouch™, PICDEM™ Touch, Capacitive Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DM164125 Datasheet |
| Internal Part Number | 898-DM164125 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Intro to Capacitive Sensing Appl Notes Layout and Physical Design Appl Note | |
| Design Resources | Development Tool Selector | |
| Featured Product | mTouch™ | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Microchip Technology | |
| Series | mTouch™, PICDEM™ | |
| Part Status | Obsolete | |
| Sensor Type | Touch, Capacitive | |
| Sensing Range | - | |
| Interface | Microprocessor | |
| Sensitivity | - | |
| Voltage - Supply | - | |
| Embedded | Yes, MCU, 8-Bit | |
| Supplied Contents | Board, Cable | |
| Utilized IC / Part | PIC16F677, PIC16F887 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DM164125 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DM164125 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM164125 is new and unused, you can buy DM164125 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM164125.
