| Manufacturer Part Number: | DM163045 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9047 Pieces |
| Unit Price: | Quote by Email |

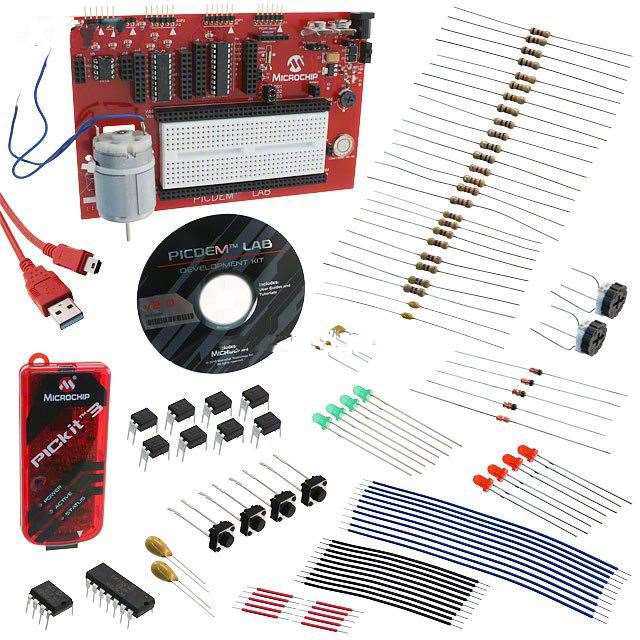

| Description: | PIC12F615, PIC16F616 PICDEM™ Lab PIC® MCU PIC Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DM163045 Datasheet |
| Internal Part Number | 898-DM163045 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Featured Product | PIC16(L)F170x/171x 8-bit MCU Family | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | PIC Evaluation Board DM163045 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Microchip Technology | |
| Series | PIC® | |
| Part Status | Active | |
| Board Type | Evaluation Platform | |
| Type | MCU | |
| Core Processor | PIC | |
| Operating System | - | |
| Platform | PICDEM™ Lab | |
| For Use With/Related Products | PIC12F615, PIC16F616 | |
| Mounting Type | Socket | |
| Contents | Board(s), Cable(s), Accessories, PICkit™ 3 Programmer | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DM163045 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DM163045 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM163045 is new and unused, you can buy DM163045 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM163045.
