Manufacturer Part Number: | DM163024 |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

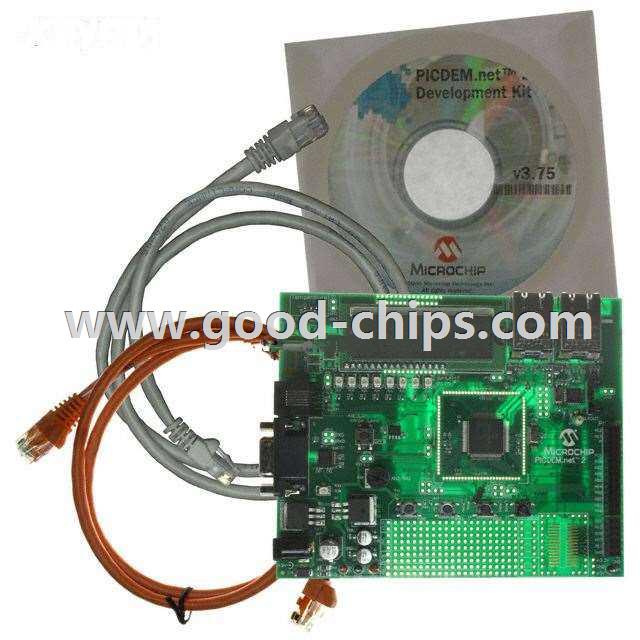

Description: | ENC28J60, PIC18F97J60 PICDEM.net™ 2 Series Interface, Ethernet Control Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DM163024 Datasheet |
Internal Part Number | 898-DM163024 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Embedded Ethernet PIC18 J Series MCU Overview 8-bit PIC® Microcontroller Portfolio | |
Design Resources | Development Tool Selector | |
Featured Product | RN1810 Wi-Fi PICtail™/PICtail™ Plus Daughter Board | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Microchip Technology | |
Series | PICDEM.net™ 2 | |
Part Status | Obsolete | |
Main Purpose | Interface, Ethernet Control | |
Embedded | Yes, MCU, 8-Bit | |
Utilized IC / Part | ENC28J60, PIC18F97J60 | |
Primary Attributes | Ethernet Controller and MCU, 2 LCDs, Temp Sensor | |
Secondary Attributes | - | |
Supplied Contents | Board, Cables | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DM163024 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DM163024 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of DM163024 is new and unused, you can buy DM163024 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DM163024.
