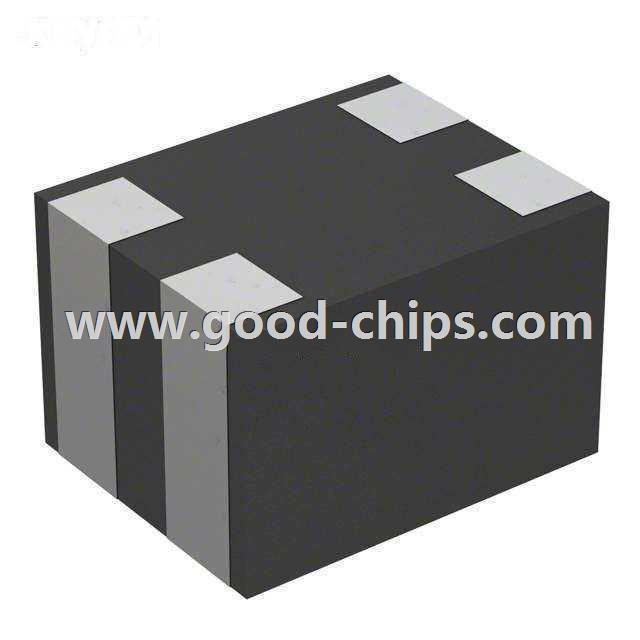

| Manufacturer Part Number: | DLP11SN331HL2L |
|---|---|
| Manufacturer: | Murata Electronics North America |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Line Common Mode Choke Surface Mount 330 Ohm @ 100MHz 80mA DCR 6.13 Ohm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DLP11SN331HL2L Datasheet |
| Internal Part Number | 898-DLP11SN331HL2L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Common Mode Chokes | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | EMIFIL® DLP11S Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Murata Electronics North America | |
| Series | DLP11 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 330 Ohm @ 100MHz | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 80mA | |
| DC Resistance (DCR) (Max) | 6.13 Ohm | |
| Voltage Rating - DC | 5V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) | |
| Height (Max) | 0.036" (0.92mm) | |
| Package / Case | 0504 (1210 Metric), 4 Lead | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DLP11SN331HL2L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DLP11SN331HL2L is in stock for immediate shipping now. We are the distributor of Murata Electronics North America all series components. The condition of DLP11SN331HL2L is new and unused, you can buy DLP11SN331HL2L Murata Electronics North America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DLP11SN331HL2L.
