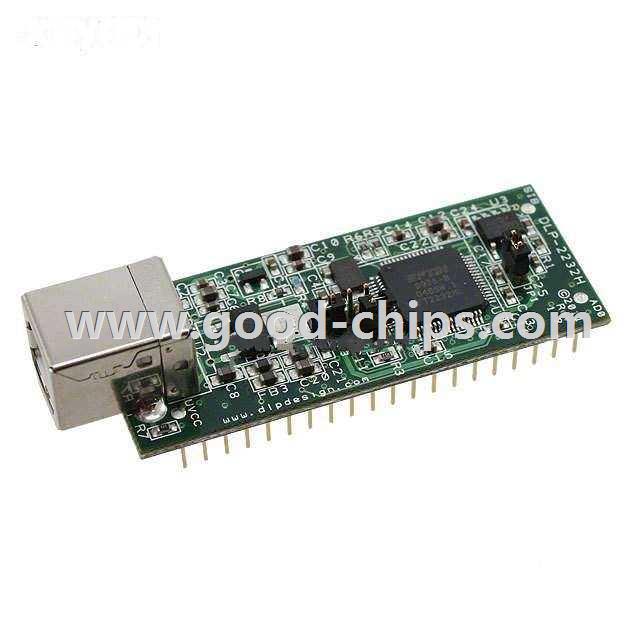

| Manufacturer Part Number: | DLP-2232H |
|---|---|
| Manufacturer: | DLP Design Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9124 Pieces |
| Unit Price: | Quote by Email |
| Description: | FT2232H - Interface, USB 2.0 to UART (RS232) Bridge Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DLP-2232H Datasheet |
| Internal Part Number | 898-DLP-2232H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | DLP-2232H USB Adapter Module | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | DLP Design Inc. | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Interface, USB 2.0 to UART (RS232) Bridge | |
| Embedded | No | |
| Utilized IC / Part | FT2232H | |
| Primary Attributes | Full Speed USB to High-Speed UART | |
| Secondary Attributes | Royalty-Free Drivers, 2K EEPROM | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DLP-2232H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DLP-2232H is in stock for immediate shipping now. We are the distributor of DLP Design Inc. all series components. The condition of DLP-2232H is new and unused, you can buy DLP-2232H DLP Design Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DLP-2232H.
