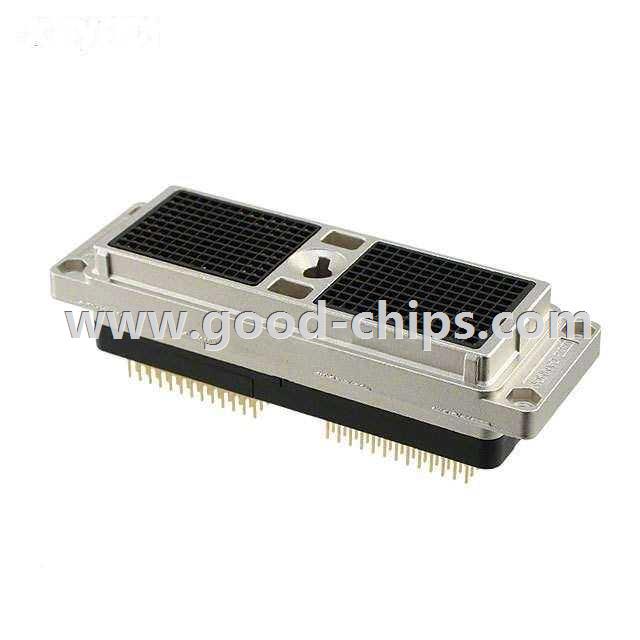

Manufacturer Part Number: | DLM5-260RW6B |
---|---|
Manufacturer: | ITT Cannon, LLC |
Product Category: | Backplane Connectors - Specialized |
Available Quantity: | 9100 Pieces |
Unit Price: | Quote by Email |
Description: | CONN 260POS ZIF PCB RCPT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DLM5-260RW6B Datasheet |
Internal Part Number | 898-DLM5-260RW6B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | DLM Series | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - Specialized | |
Manufacturer | ITT Cannon, LLC | |
Series | DLM | |
Packaging | Bulk | |
Part Status | Active | |
Connector Usage | - | |
Connector Type | Receptacle, Hermaphroditic Contacts | |
Connector Style | - | |
Number of Positions | 260 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 10 | |
Number of Columns | - | |
Mounting Type | Panel Mount | |
Termination | Solder | |
Contact Layout, Typical | - | |
Features | Actuating Camshaft Socket, Shielding, Zero Insertion Force (ZIF) | |
Contact Finish | Gold | |
Contact Finish Thickness | 50µin (1.27µm) | |
Color | - | |
Current Rating | - | |
Material Flammability Rating | UL94 V-0 | |
Operating Temperature | -55°C ~ 105°C | |
Voltage Rating | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DLM5-260RW6B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DLM5-260RW6B is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of DLM5-260RW6B is new and unused, you can buy DLM5-260RW6B ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DLM5-260RW6B.
