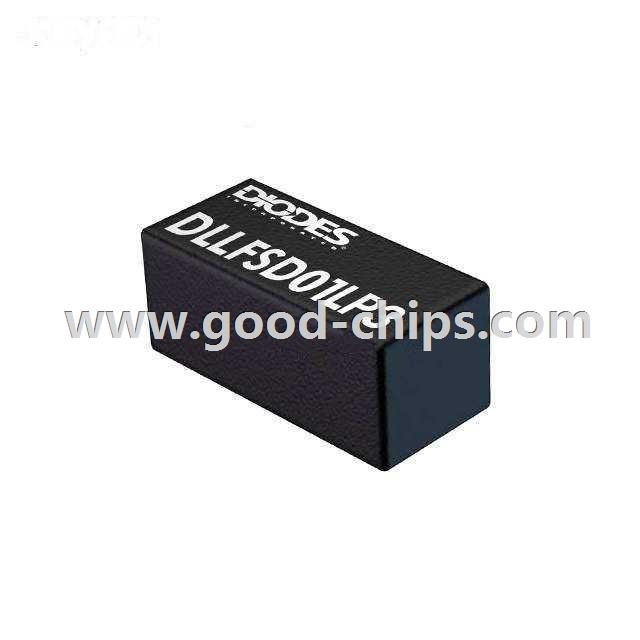

Manufacturer Part Number: | DLLFSD01LP3-7 |
---|---|
Manufacturer: | Diodes Incorporated |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 19010 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE GEN PURP 80V 100MA 2DFN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DLLFSD01LP3-7 Datasheet |
Internal Part Number | 898-DLLFSD01LP3-7 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | DLLFSD01 Switching Diodes | |
Online Catalog | Standard Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Diodes Incorporated | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 80V | |
Current - Average Rectified (Io) | 100mA | |
Voltage - Forward (Vf) (Max) @ If | 1.2V @ 100mA | |
Speed | Small Signal =< 200mA (Io), Any Speed | |
Reverse Recovery Time (trr) | 4ns | |
Current - Reverse Leakage @ Vr | 200nA @ 80V | |
Capacitance @ Vr, F | 2.5pF @ 0V, 1MHz | |
Mounting Type | Surface Mount | |
Package / Case | 2-XFDFN | |
Supplier Device Package | X3-DFN0603-2 | |
Operating Temperature - Junction | -65°C ~ 150°C | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DLLFSD01LP3-7 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DLLFSD01LP3-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of DLLFSD01LP3-7 is new and unused, you can buy DLLFSD01LP3-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DLLFSD01LP3-7.
