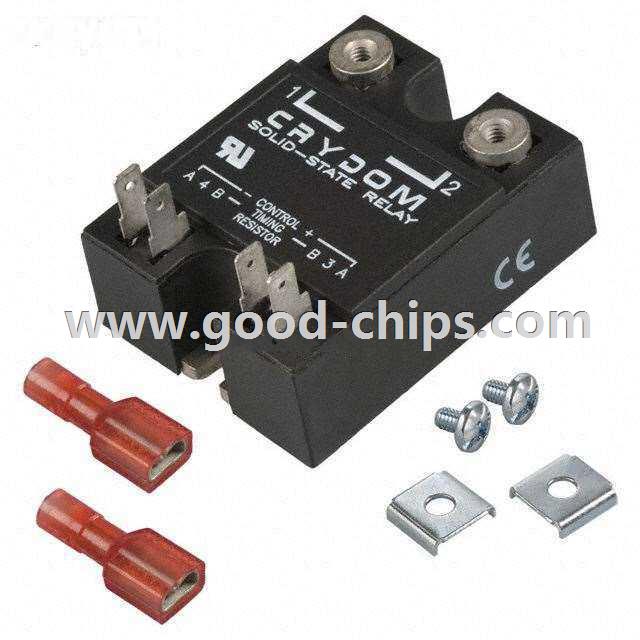

| Manufacturer Part Number: | DLD2425 |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Time Delay Relays |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | On-Delay Time Delay Relay SPST-NO (1 Form A) 1.6 Sec ~ 133 Sec Delay 25A @ 280VAC Chassis Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DLD2425 Datasheet |
| Internal Part Number | 898-DLD2425 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Declaration of Conformity | |
| 3D Model | DSD/DLD Series.sat DSD/DLD Series.dwg DSD/DLD Series.stp | |
| Online Catalog | DLD and DSD Series | |
| Category | Relays | |
| Family | Time Delay Relays | |
| Manufacturer | Crydom Co. | |
| Series | DLD | |
| Part Status | Active | |
| Relay Type | Integrated | |
| Function | On-Delay | |
| Circuit | SPST-NO (1 Form A) | |
| Delay Time | 1.6 Sec ~ 133 Sec | |
| Output Type | Solid State Relay | |
| Contact Rating @ Voltage | 25A @ 280VAC | |
| Voltage - Supply | 3.5 ~ 15VDC | |
| Mounting Type | Chassis Mount | |
| Termination Style | Screw Terminal, Quick Connect - 0.187" (4.7mm) | |
| Timing Adjustment Method | External Resistor | |
| Timing Initiate Method | Input Voltage | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DLD2425 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DLD2425 is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of DLD2425 is new and unused, you can buy DLD2425 Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DLD2425.
