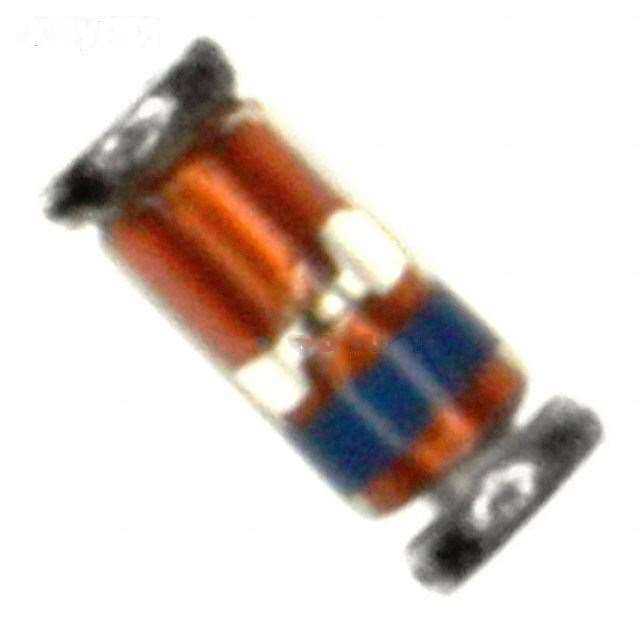

Manufacturer Part Number: | DL5247B-TP |
---|---|
Manufacturer: | Micro Commercial Co |
Product Category: | Diodes - Zener - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Zener Diode 17V 500mW ±5% Surface Mount Mini MELF |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DL5247B-TP Datasheet |
Internal Part Number | 898-DL5247B-TP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Diode Handling and Mounting | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Zener - Single | |
Manufacturer | Micro Commercial Co | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Voltage - Zener (Nom) (Vz) | 17V | |
Tolerance | ±5% | |
Power - Max | 500mW | |
Impedance (Max) (Zzt) | 19 Ohm | |
Current - Reverse Leakage @ Vr | 100nA @ 13V | |
Voltage - Forward (Vf) (Max) @ If | 1.1V @ 200mA | |
Operating Temperature | -65°C ~ 175°C | |
Mounting Type | Surface Mount | |
Package / Case | DO-213AC, MINI-MELF, SOD-80 | |
Supplier Device Package | Mini MELF | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DL5247B-TP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DL5247B-TP is in stock for immediate shipping now. We are the distributor of Micro Commercial Co all series components. The condition of DL5247B-TP is new and unused, you can buy DL5247B-TP Micro Commercial Co with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DL5247B-TP.
