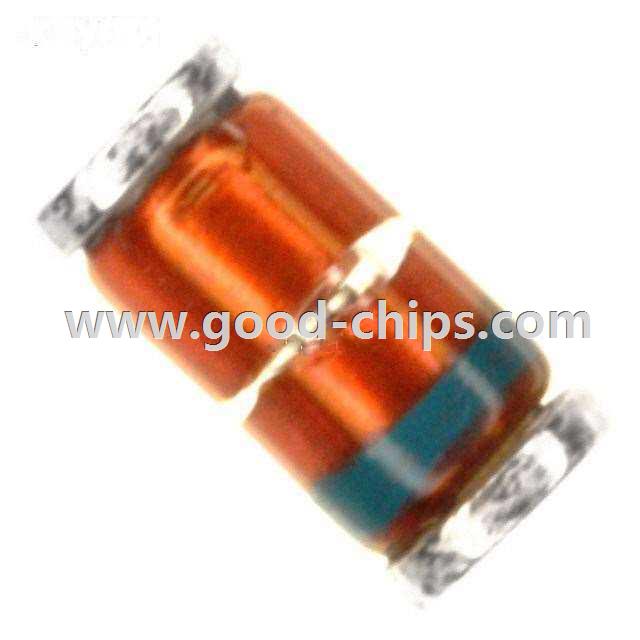

| Manufacturer Part Number: | DL4744A-TP |
|---|---|
| Manufacturer: | Micro Commercial Co |
| Product Category: | Diodes - Zener - Single |
| Available Quantity: | 14010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Zener Diode 15V 1W ±5% Surface Mount MELF |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DL4744A-TP Datasheet |
| Internal Part Number | 898-DL4744A-TP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Diode Handling and Mounting | |
| Online Catalog | 1W Zener Diode 3.3 to 75V | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Zener - Single | |
| Manufacturer | Micro Commercial Co | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Voltage - Zener (Nom) (Vz) | 15V | |
| Tolerance | ±5% | |
| Power - Max | 1W | |
| Impedance (Max) (Zzt) | 14 Ohm | |
| Current - Reverse Leakage @ Vr | 5µA @ 11.4V | |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 200mA | |
| Operating Temperature | -65°C ~ 175°C | |
| Mounting Type | Surface Mount | |
| Package / Case | DO-213AB, MELF | |
| Supplier Device Package | MELF | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DL4744A-TP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DL4744A-TP is in stock for immediate shipping now. We are the distributor of Micro Commercial Co all series components. The condition of DL4744A-TP is new and unused, you can buy DL4744A-TP Micro Commercial Co with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DL4744A-TP.
